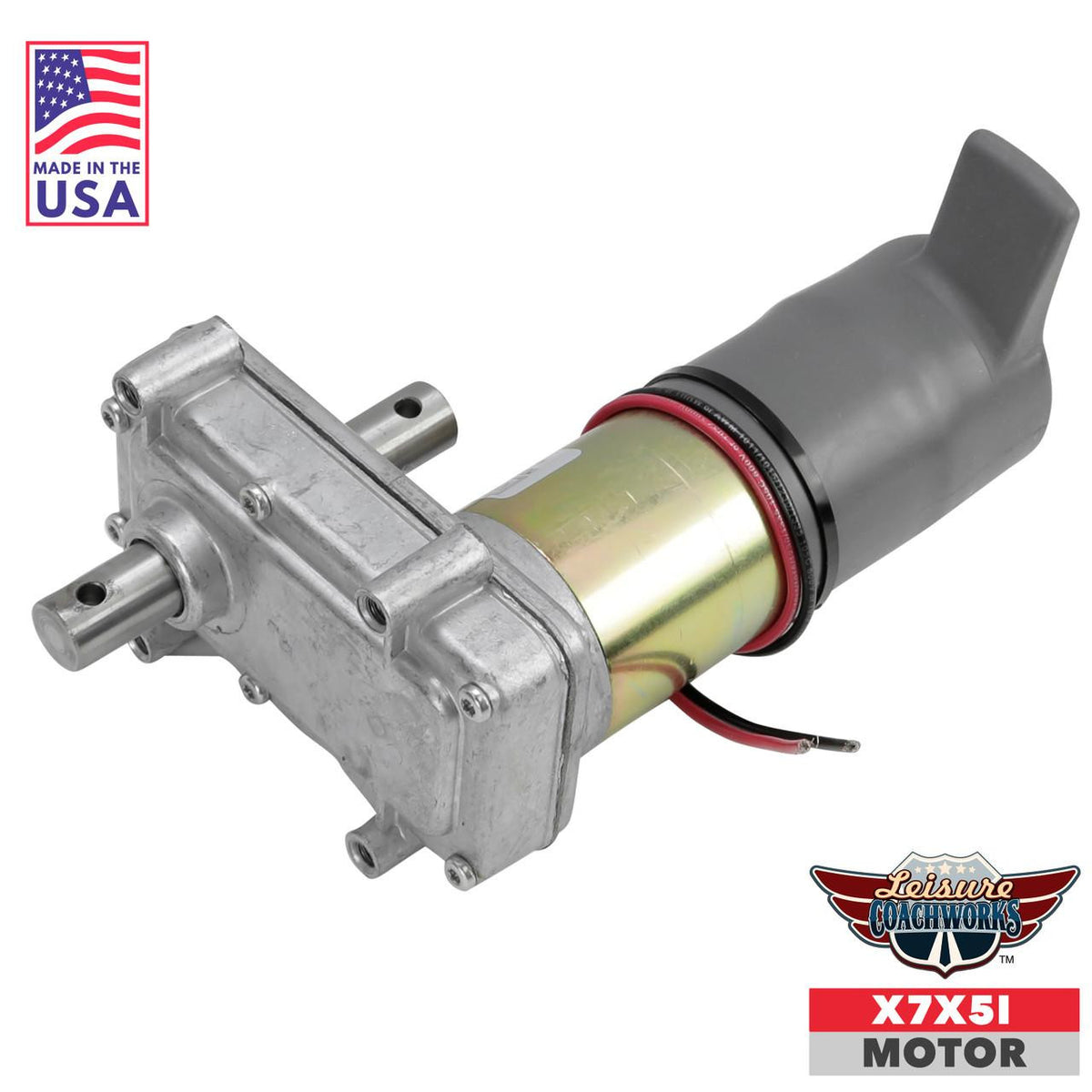

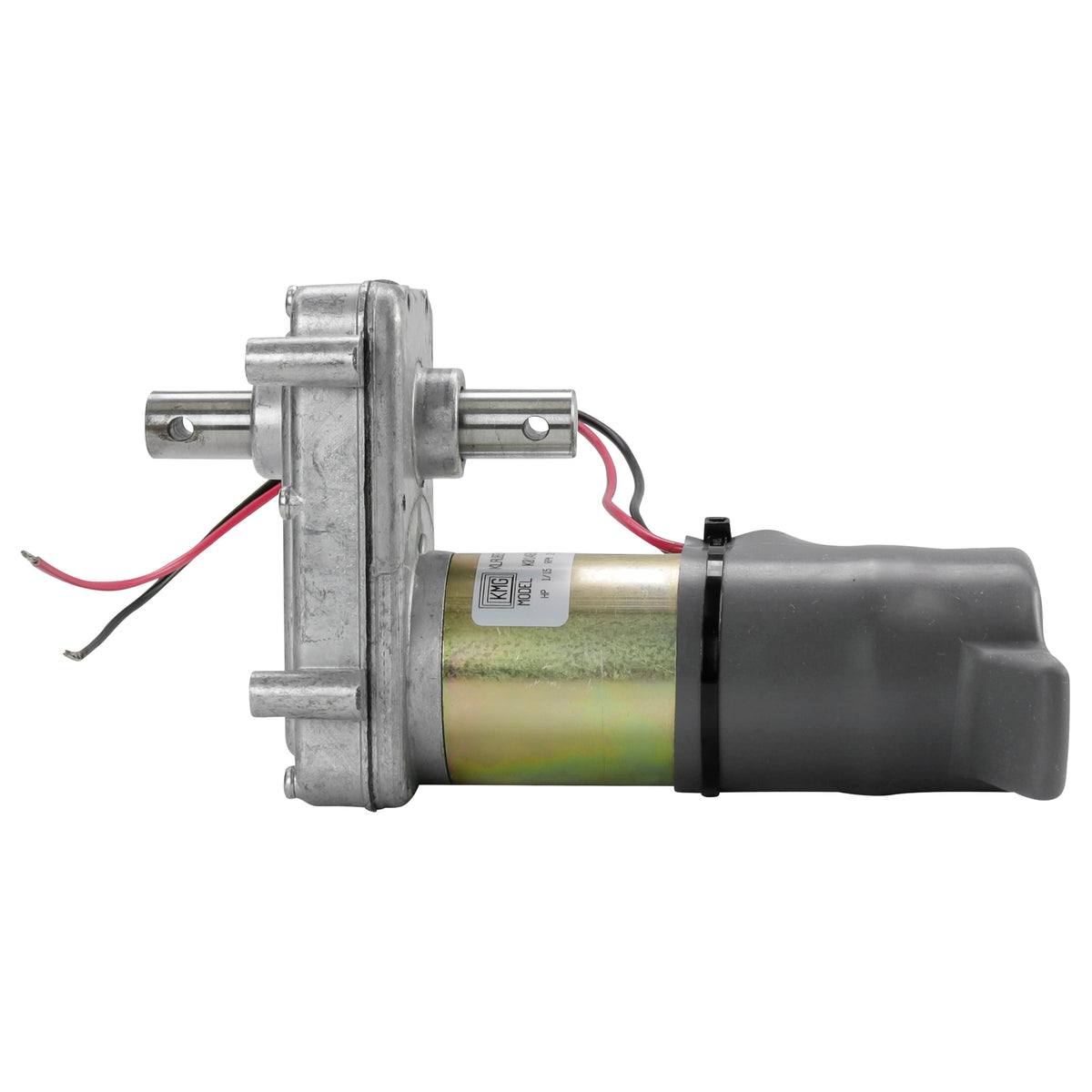

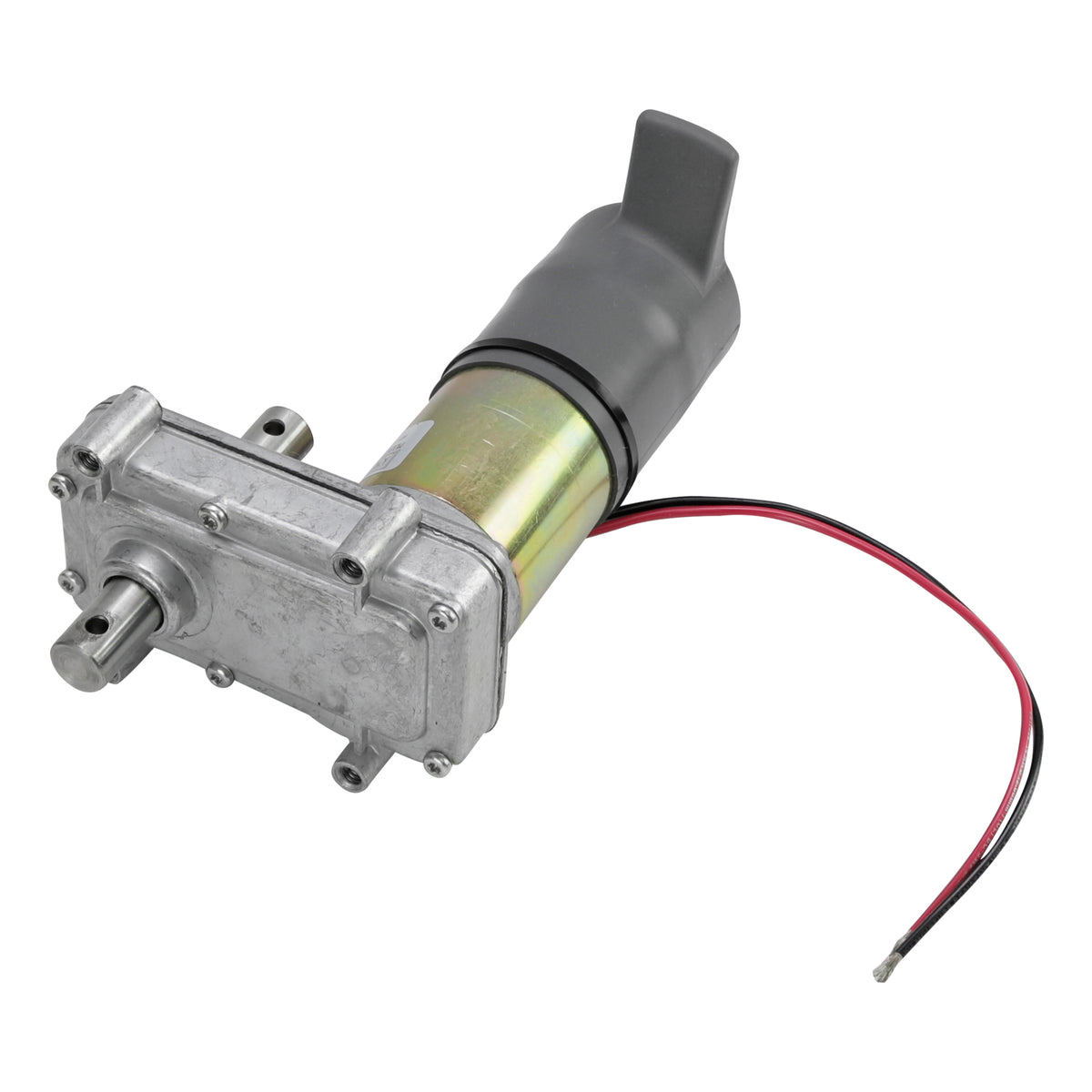

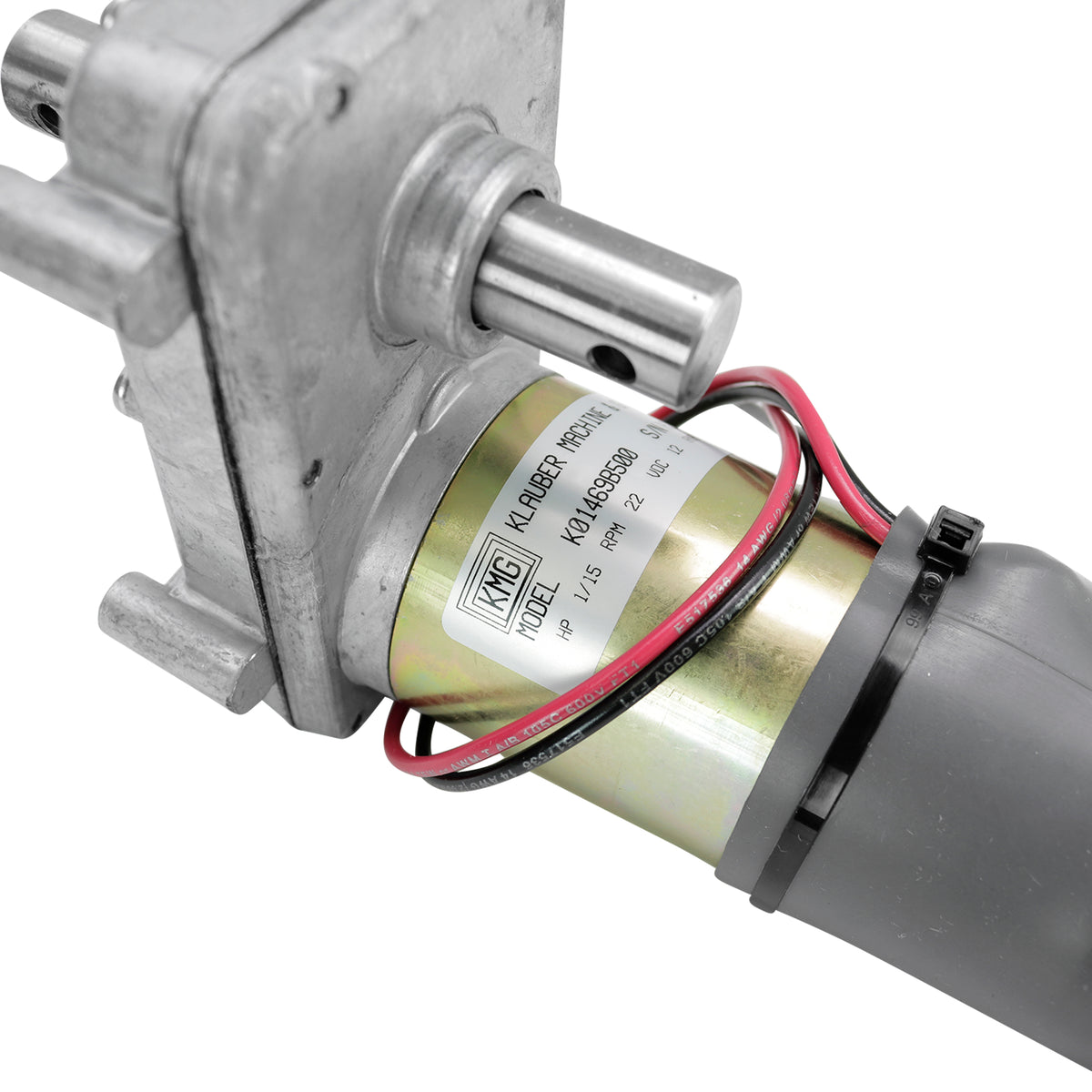

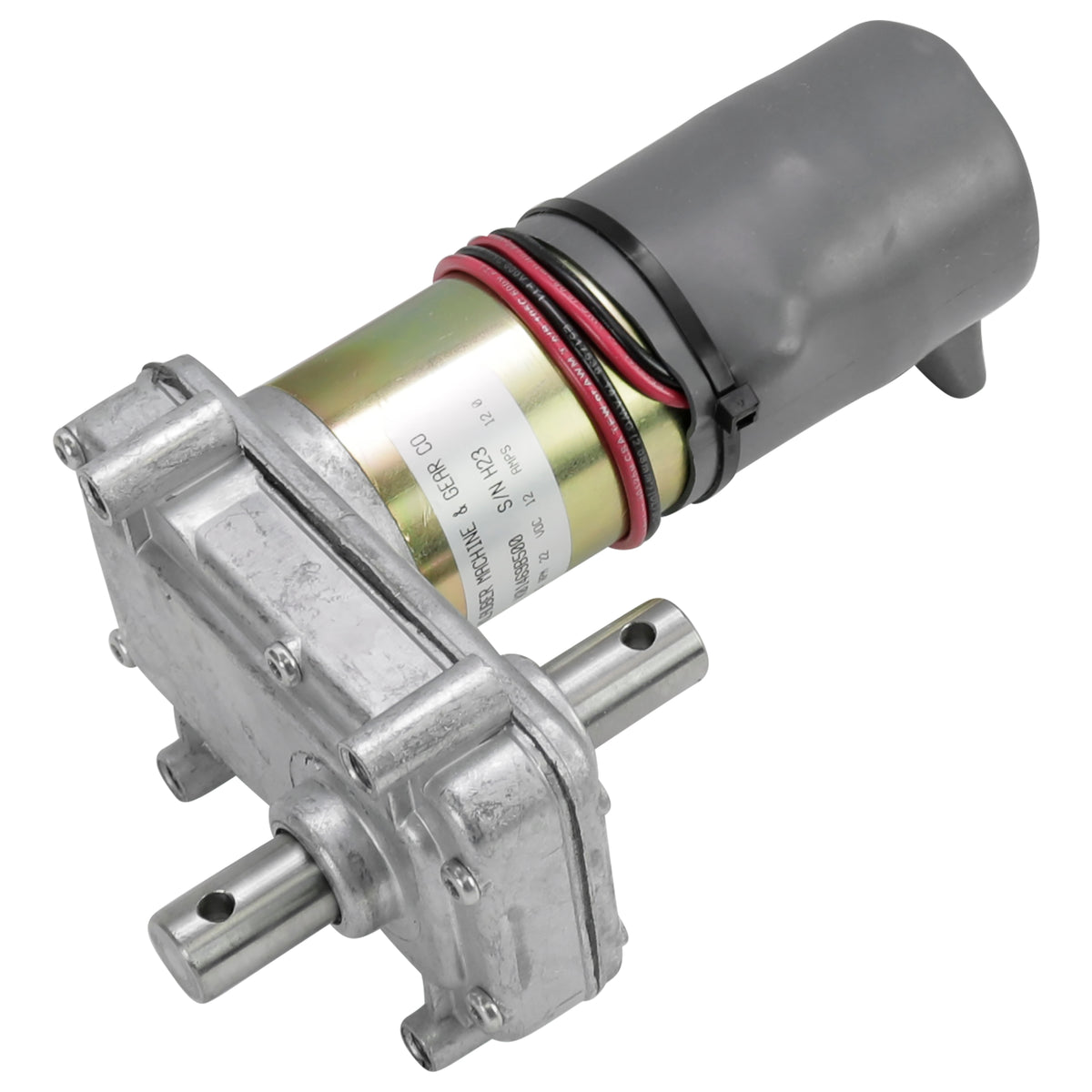

Rv slide out motor k01469b500 direct manufacturer s replacement for k01265c500 klauber motor replacing k01265c500 520430 k01265a500

New, permanent magnet, parallel shaft gear-motor. Cast aluminum gear housing and motor end cap with steel motor frame. 12 VDC electro-mechanical brake on rear of motor with manual release lever.

SPECIFICATIONS

• 22 RPM
• Voltage 12 DC
• Run Torque 250 in-lbs
• 131:1 Gear Ratio
• 12 Amp
• Rotation Reversible
• Duty Intermittent
• Enclosure TENV
• Mount Four bolt face mount on 3.38 inch x 3.38 inchcenters
• Dual Shafts 3/4 inch diam. x 1-1/4 inch with 1/4 inch crosshole (no keyway)

CROSS REFERENCES: K01265C500, K01265N500, K01265C500EB, K01265N500EB, 520430, K01265A500, 383755, 522916, 522802, 383744, 521342, 523091

ALSO REPLACES: K01250A500 motor will have a manual brake release this does not affect the functionality or performance. K01348D500 Output shaft is 0.5 inch shorter than the D500 however, all specs do match.

Electric Motors may be returned if authorized by Leisure CoachWorks and must be in new condition. Damaged or installed/used motors will not be accepted. Accepted returns are subject to a 20% restocking fee.
