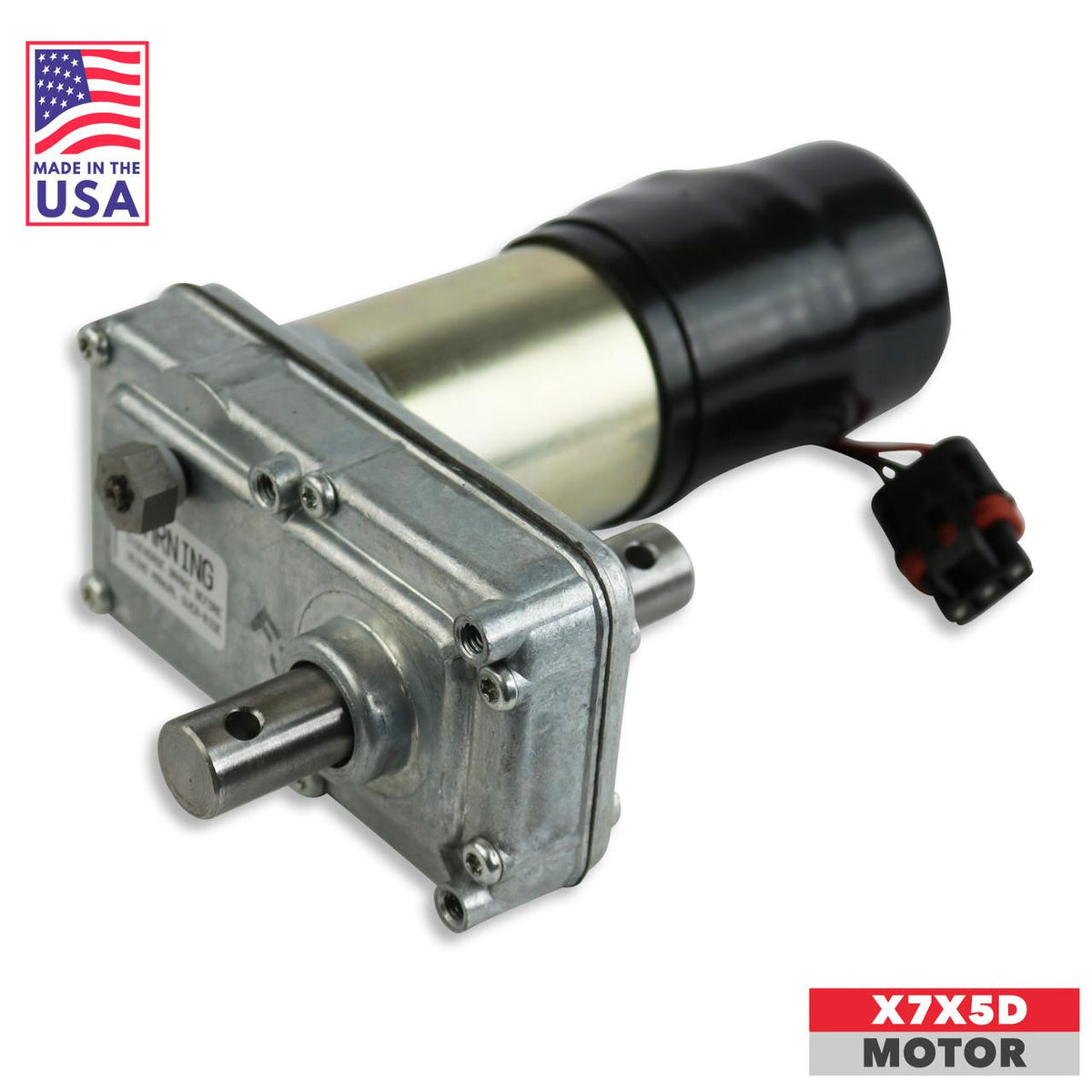

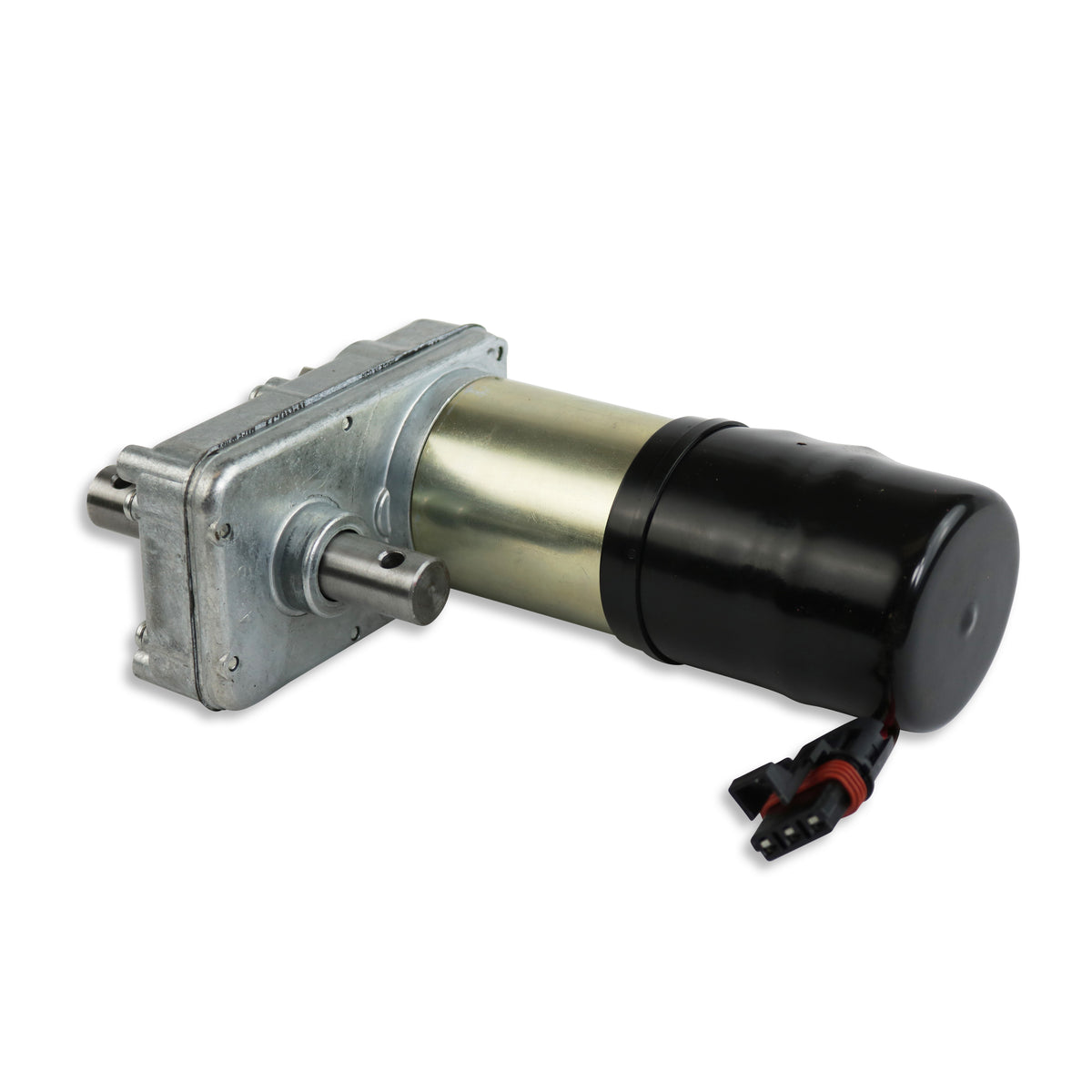

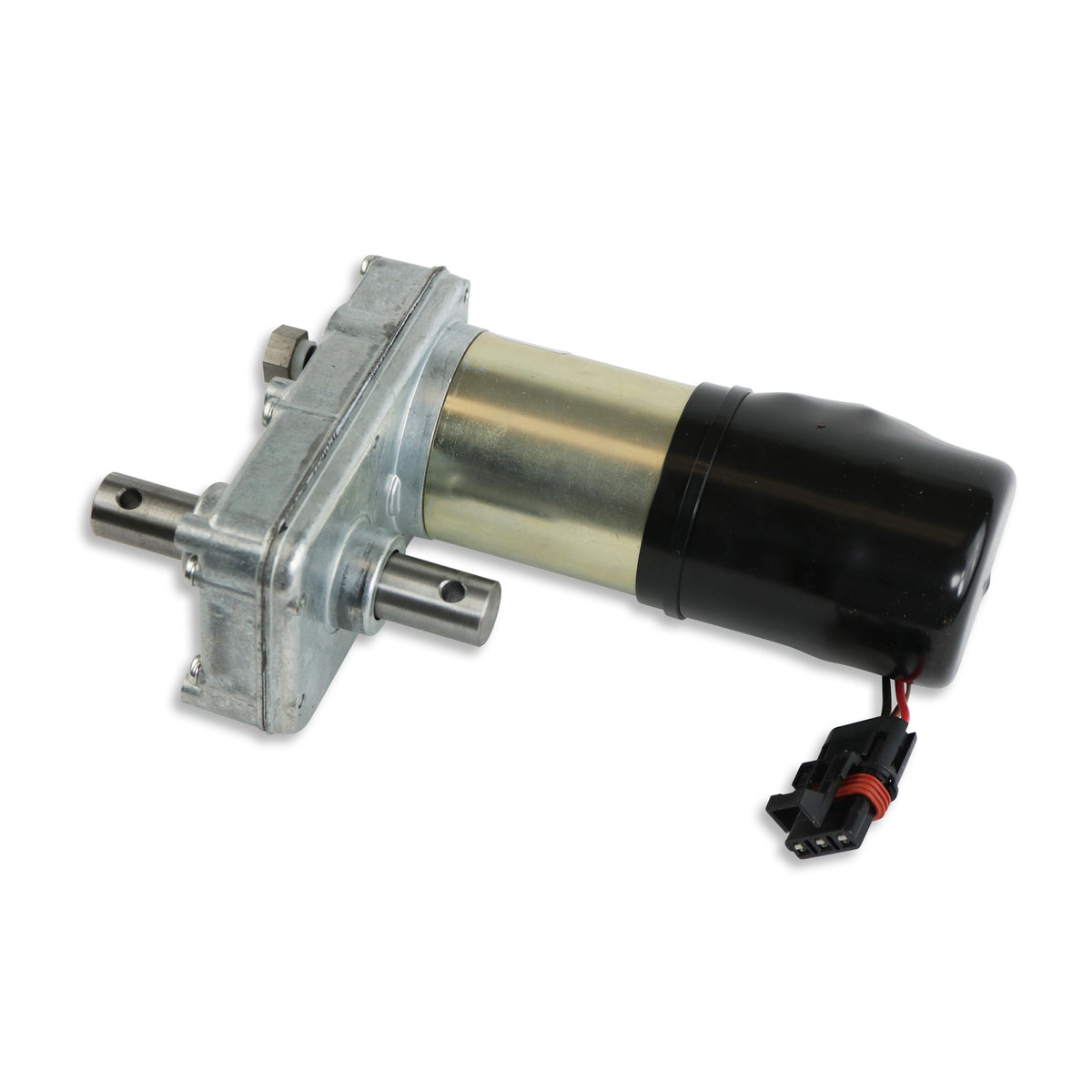

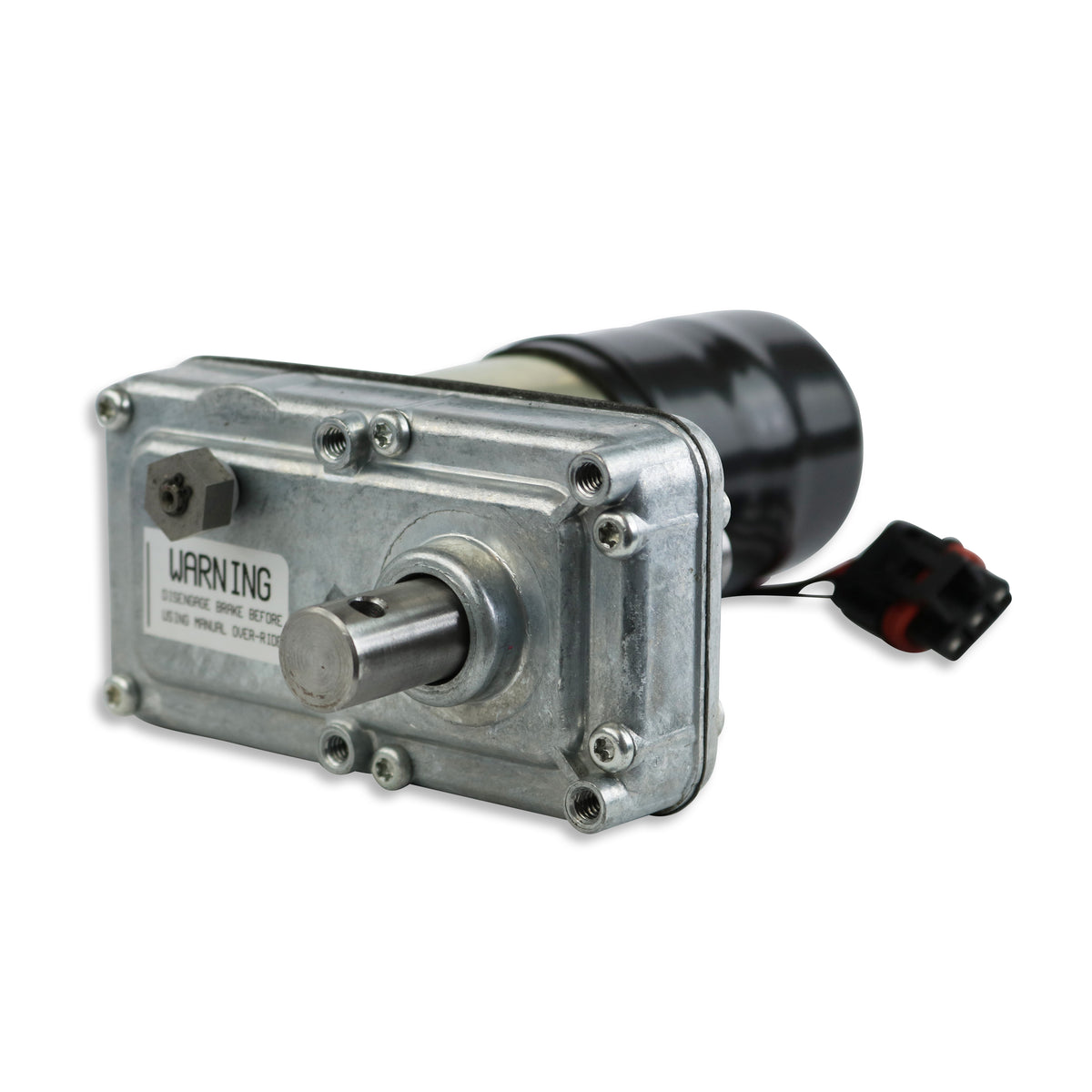

Rv slide out motor k01469a500 direct manufacturer s replacement for k01285n500 130057

New, permanent magnet, parallel shaft gear-motor. Cast aluminum gear housing and motor end cap with steel motor frame. 12 VDC electro-mechanical brake on rear of motor.

SPECIFICATIONS

• 105 RPM
• Voltage 12 DC
• Run Torque 250 in-lbs
• 287:1 Gear Ratio
• 7 Amp
• Rotation Reversible
• Duty Intermittent
• Enclosure TENV
• Four bolt face mount 2.38 inch x 2.38 inch On Center
• Dual Shafts 3/4 inch diam

CROSS REFERENCES: K01285N500, 130057,

Electric Motors may be returned if authorized by Leisure CoachWorks and must be in new condition. Damaged or installed/used motors will not be accepted. Accepted returns are subject to a 20% restocking fee.
