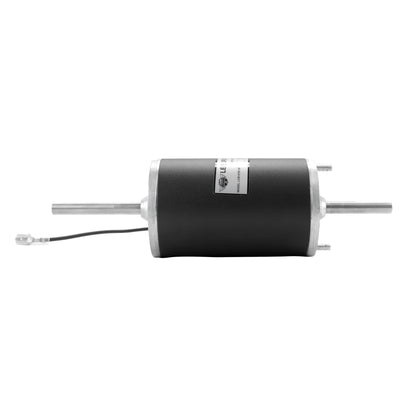

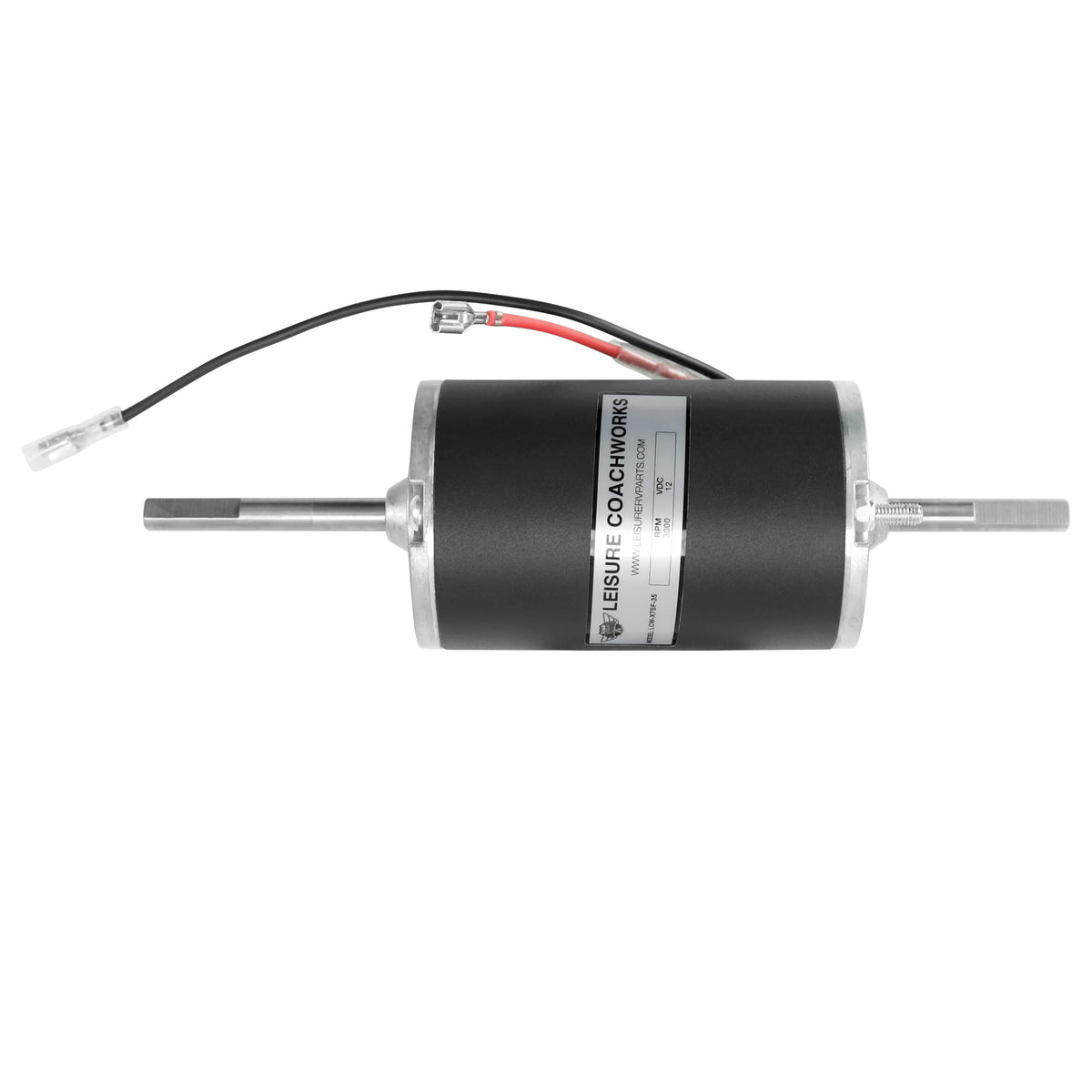

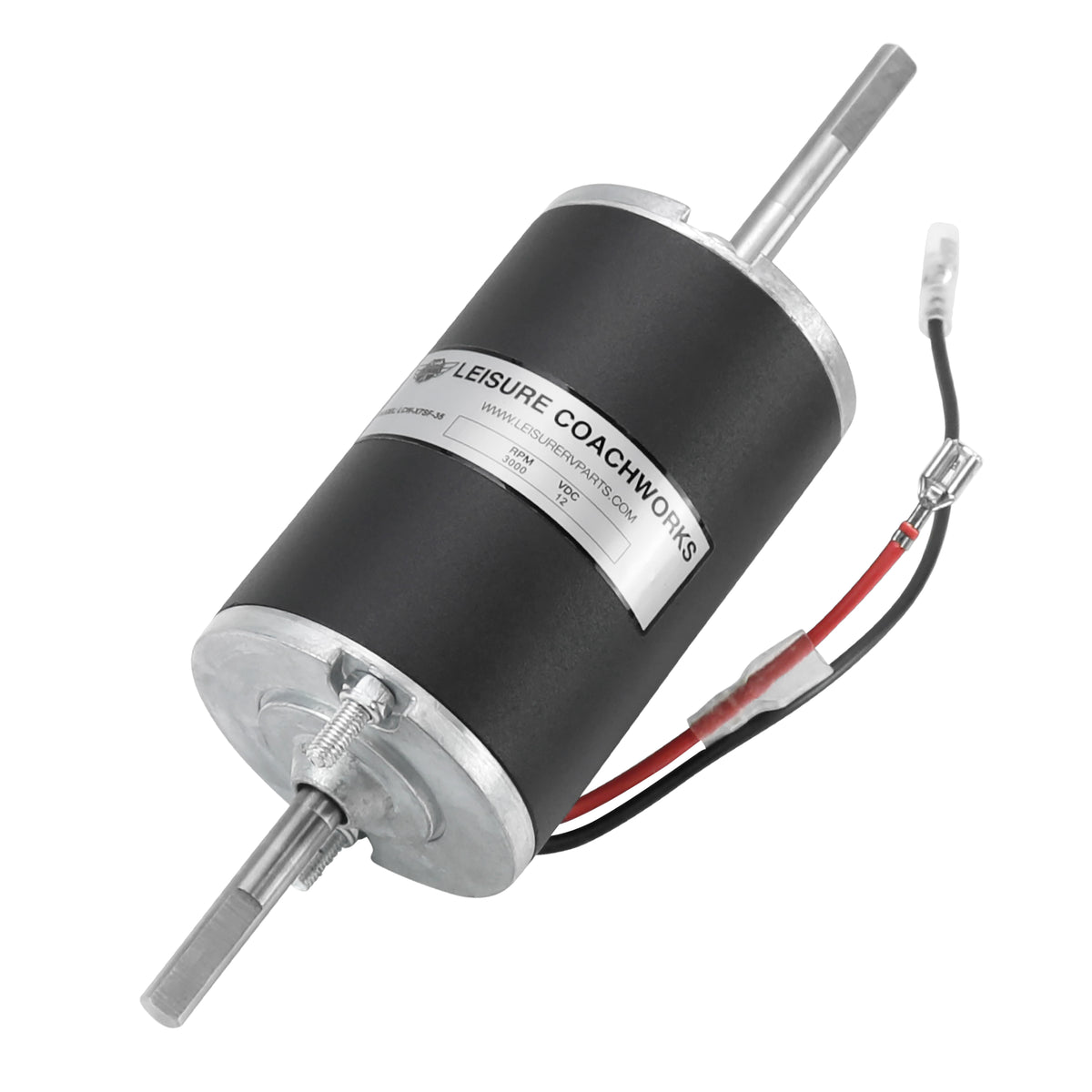

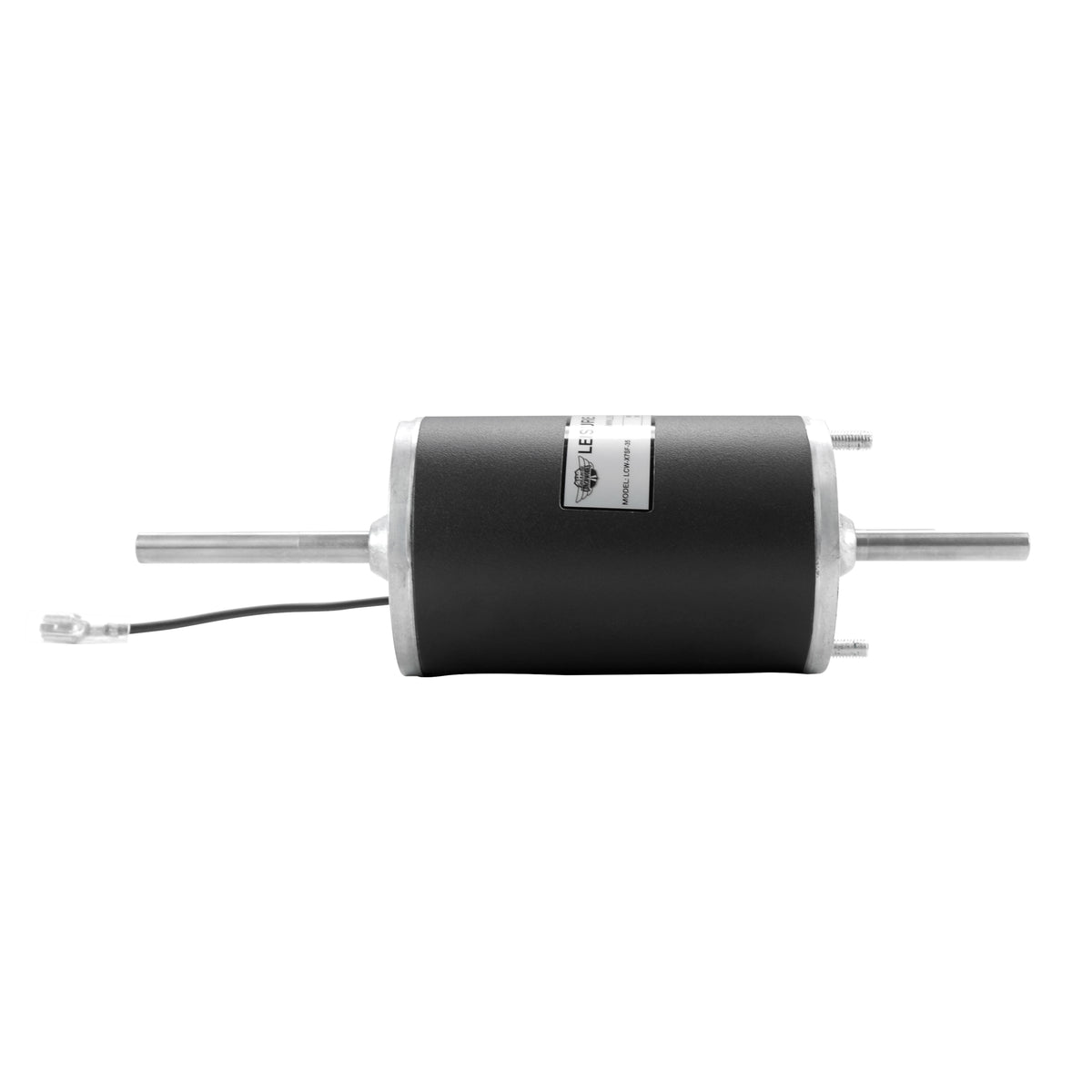

Leisure Coachworks RV Furnace Motor Replacement for SF-35 SF-35F 233102 (Black)

Keep Your RV Warm and Comfortable All Winter Long

Don't let a failing furnace motor ruin your cold-weather camping trip. Our Premium 12V RV Furnace Blower Motor is the perfect replacement for your Suburban heater. Designed specifically to match the OEM specifications for Suburban SF-35 and SF-35F furnace models, this motor ensures your heating system operates at peak efficiency when you need it most.

Operating at a robust 3000 RPM, this motor guarantees consistent and powerful warm air circulation throughout your motorhome or travel trailer. Installation is made simple with pre-attached wire leads featuring insulated female terminals and precise shaft dimensions that eliminate the need for complicated modifications.

Technical Specifications:
Voltage: 12V DC
Speed: 3000 RPM

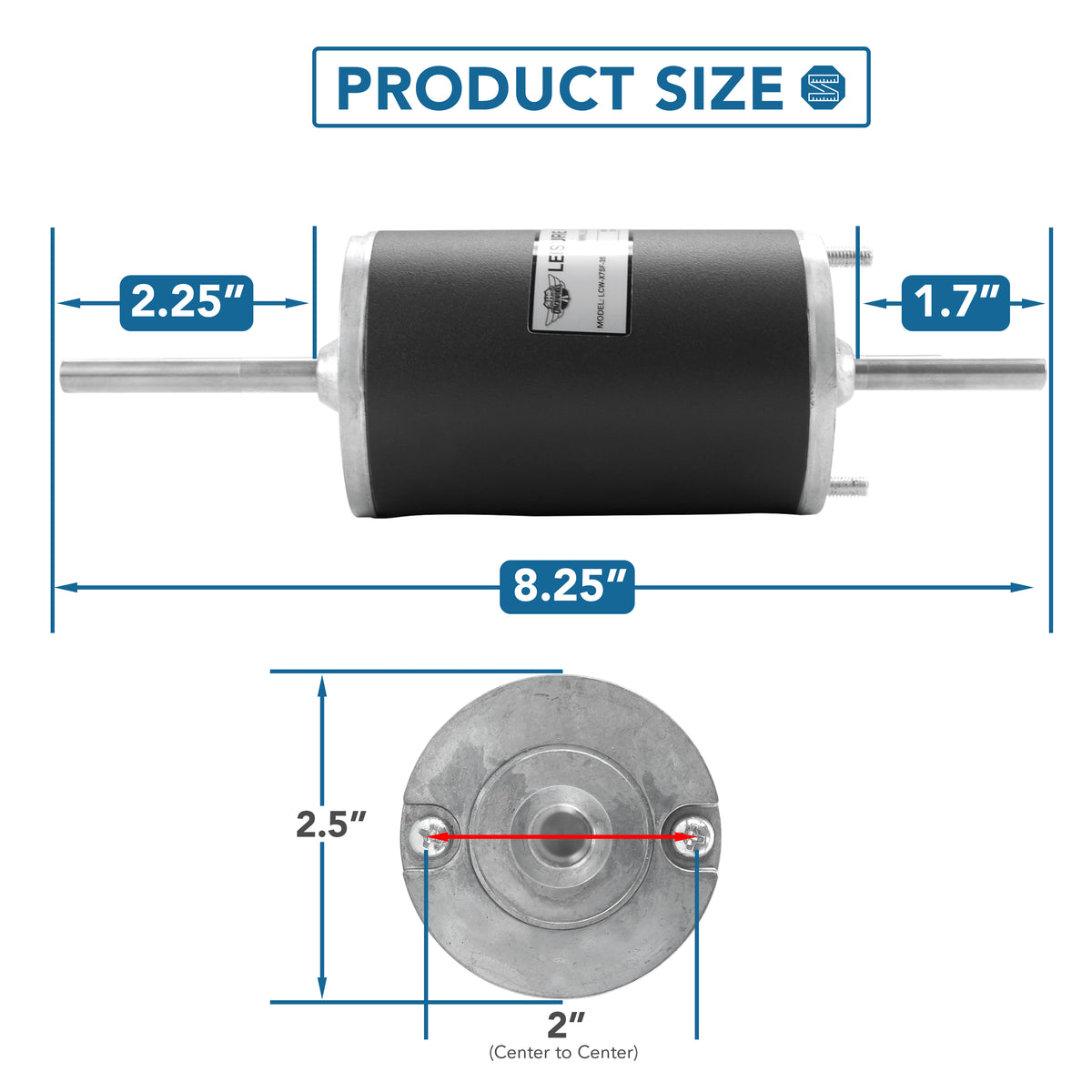

Motor Diameter: 2.5 Inches
Shaft Diameter: 5/16 Inch
Overall Dimensions: 8.25” (L) x 2.5” (W) x 2.5” (H)
Shaft Lengths (from motor base): 1.7” (Short Side) | 2.25” (Long Side)
Connection: Two wire leads with insulated female terminals
Replaces Part Numbers: 233102, 012003642, 231707
Compatible Furnace Models: Suburban SF-35, Suburban SF-35F

Note: Please verify your RV furnace model number and existing part numbers before purchasing to ensure perfect compatibility.
