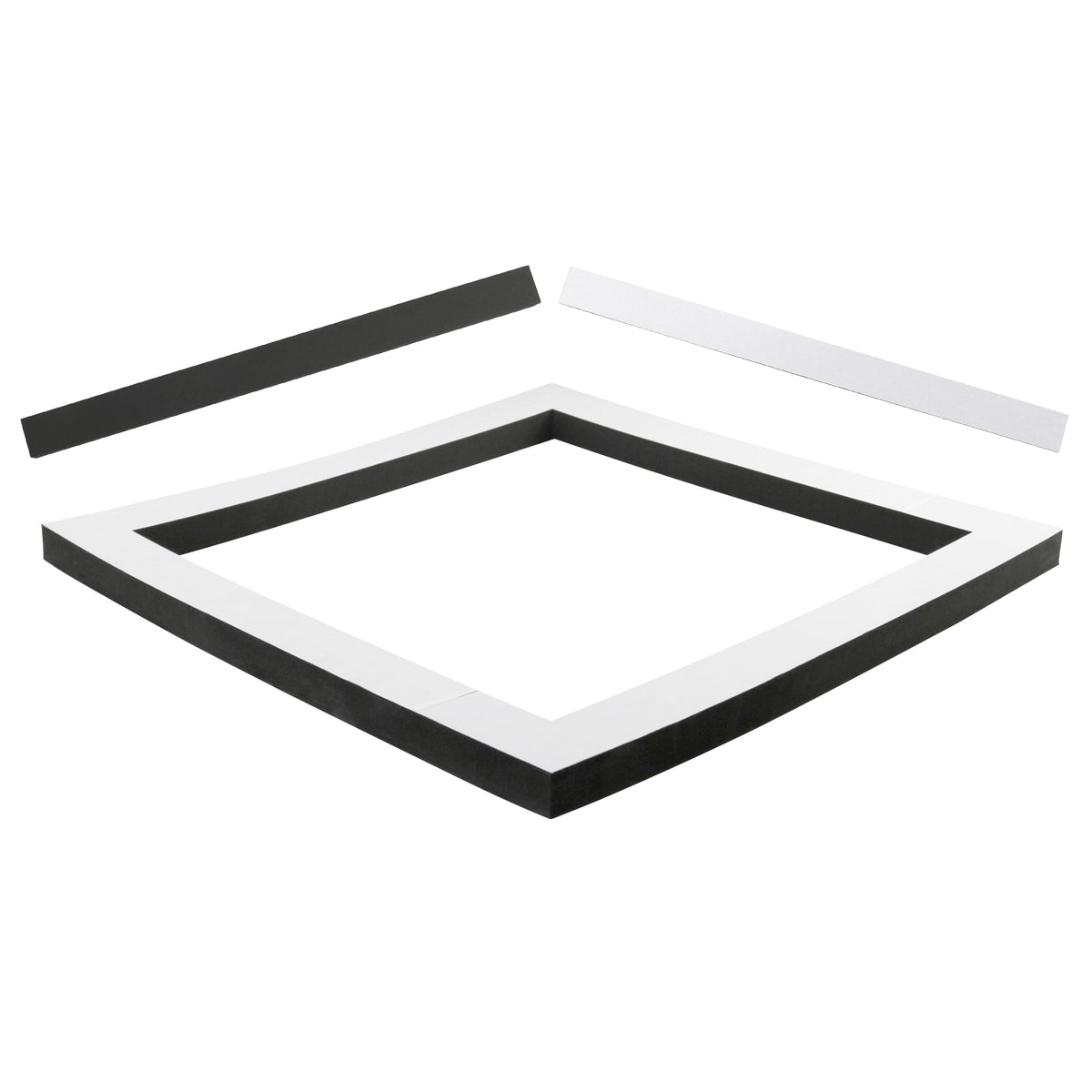

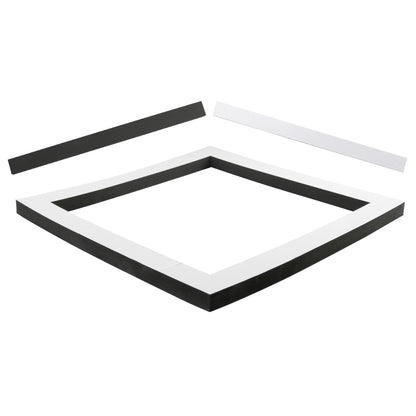

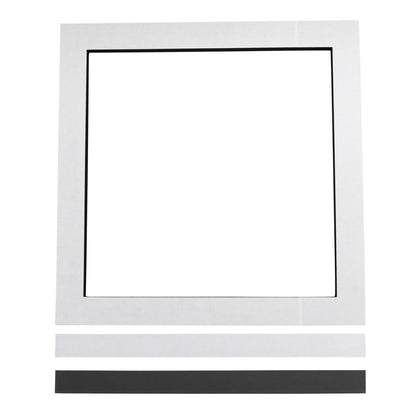

Leisure Coachworks RV Gasket Kit Replacement for 8332-3301 Roof Air Conditioner 14 Inch x 14 Inch (White)

Roof AC Gasket Kit for RVs: Allows you to install your RV's roof AC unit with confidence

Universal Fit: Fits most RV roof AC units as well as replacement for Coleman 8332-3301

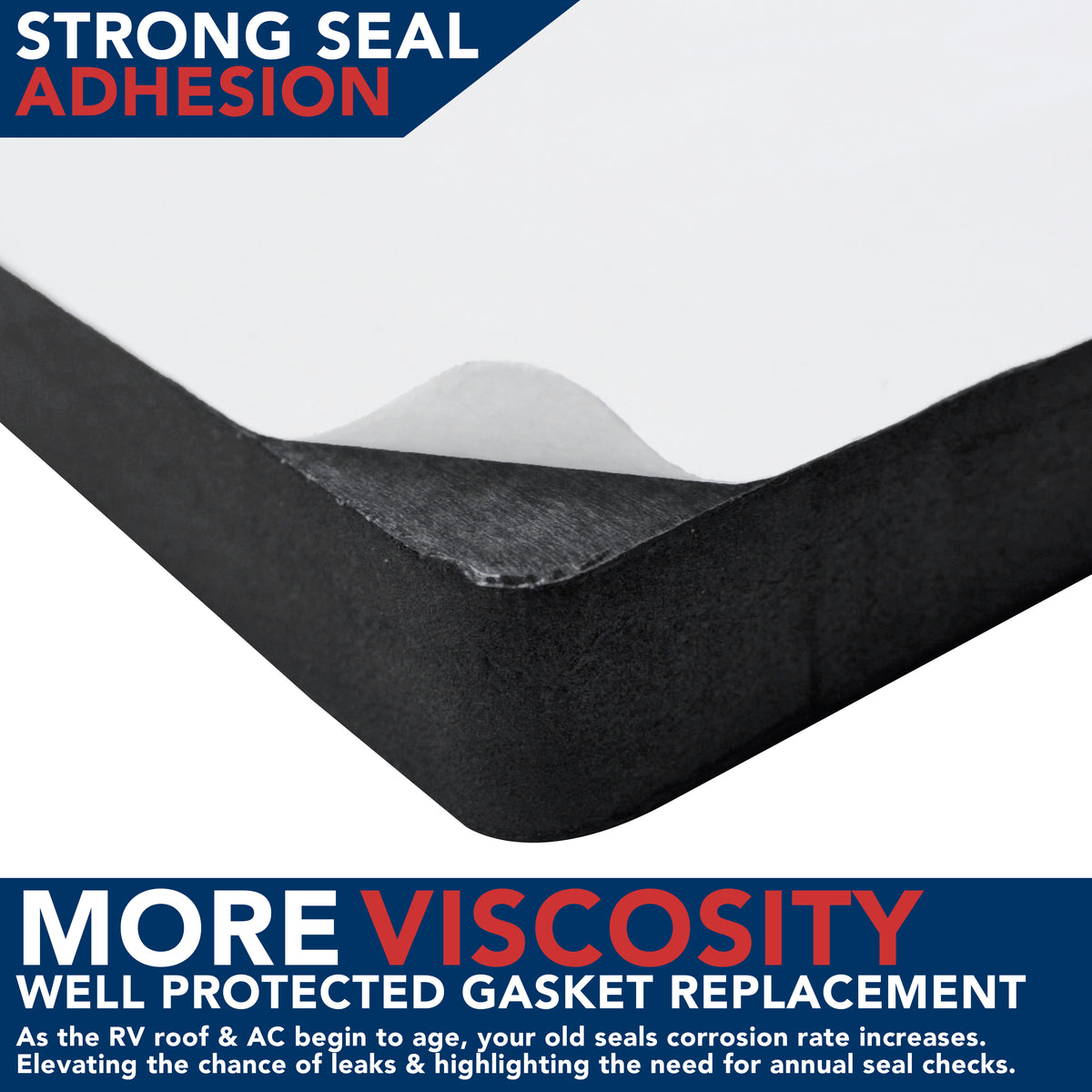

Seals: Provides a waterproof compression seal that conforms to seams, bumps and irregularities

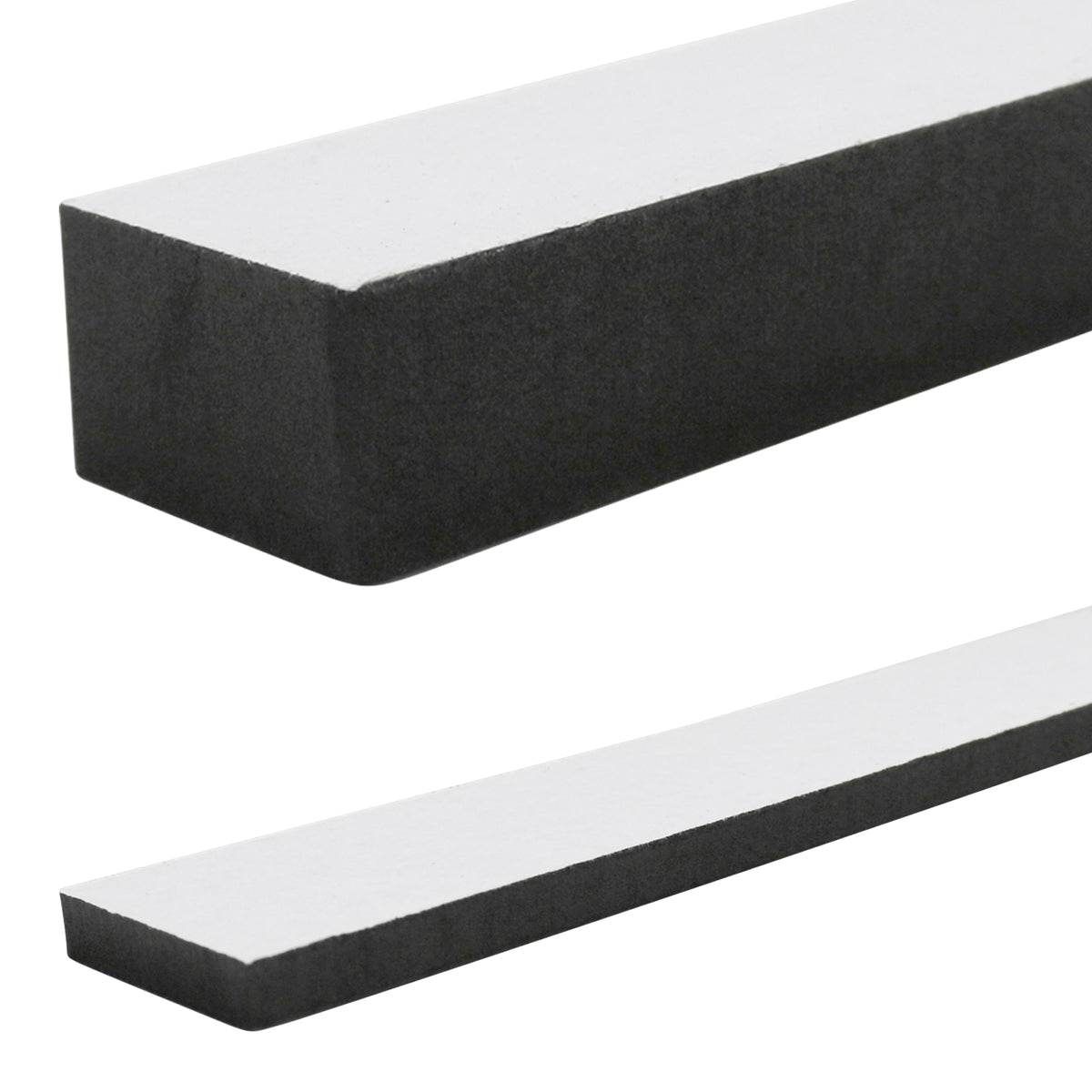

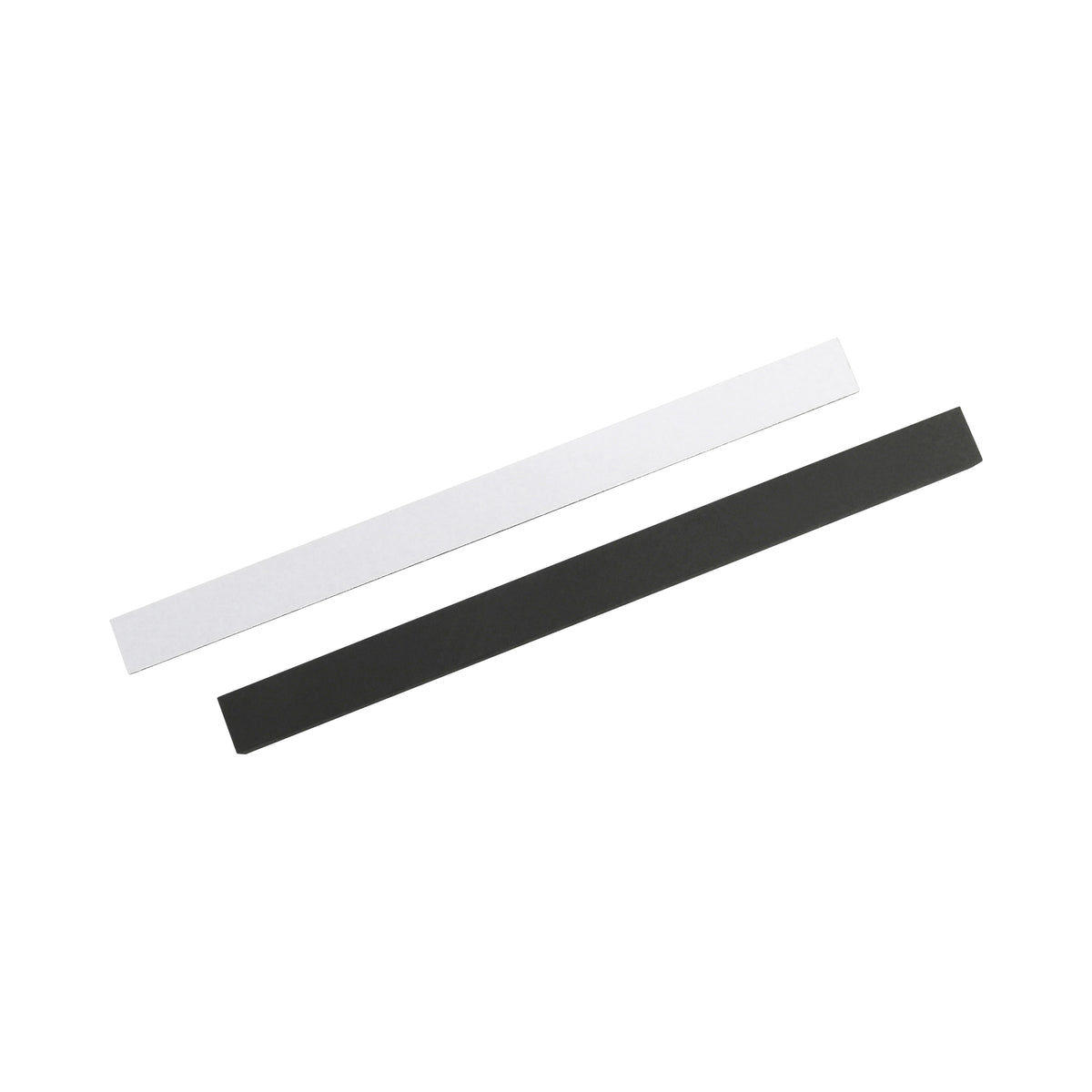

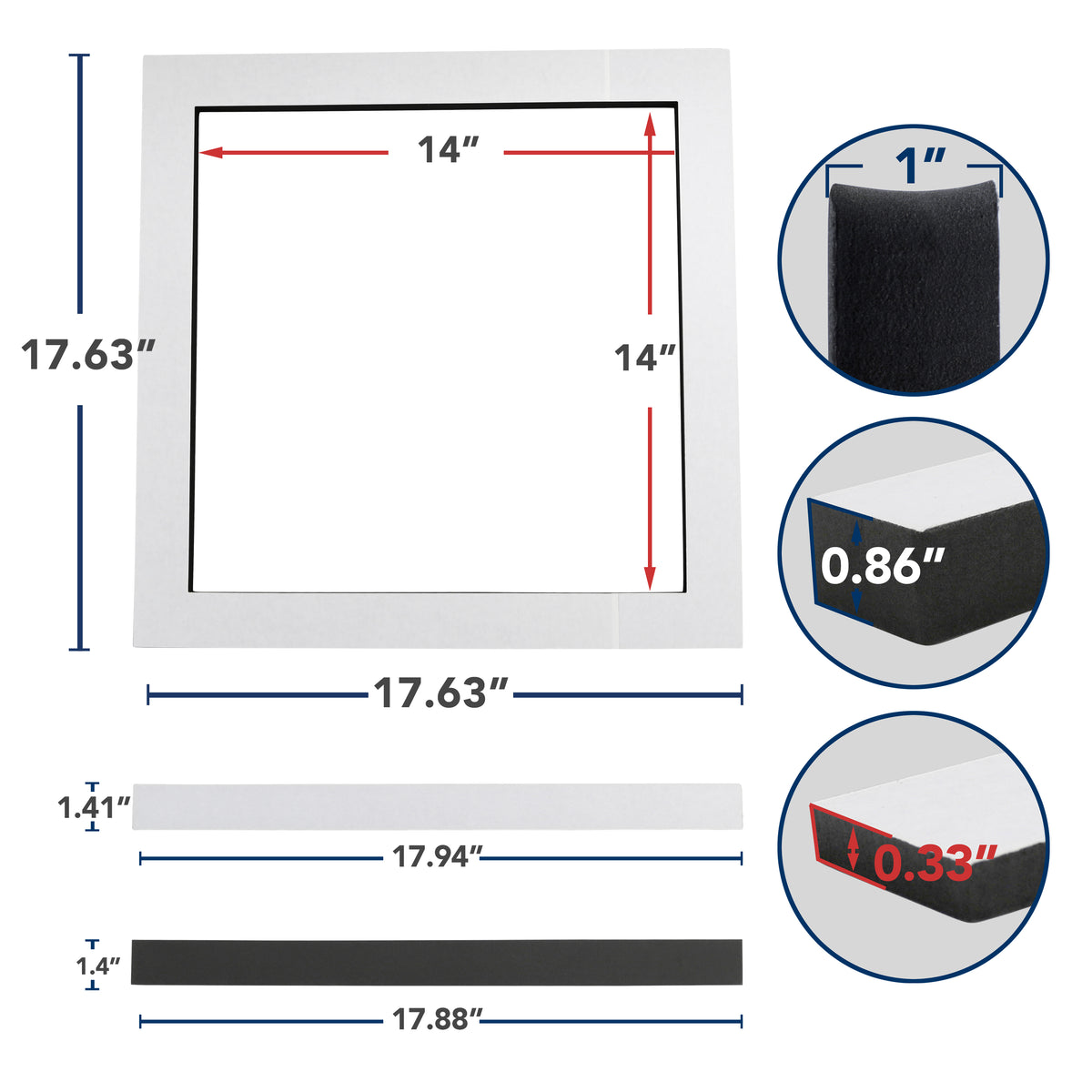

Dimensions: Foam leveling pads measure Thick Gasket Pad Dimensions: 17.94 inch (L) x 1.41 inch (W) x 0.86 inch (H), Thin Gasket Pad Dimensions: 17.88 inch (L) x 1.4 inch (W) x 0.33 inch (H).

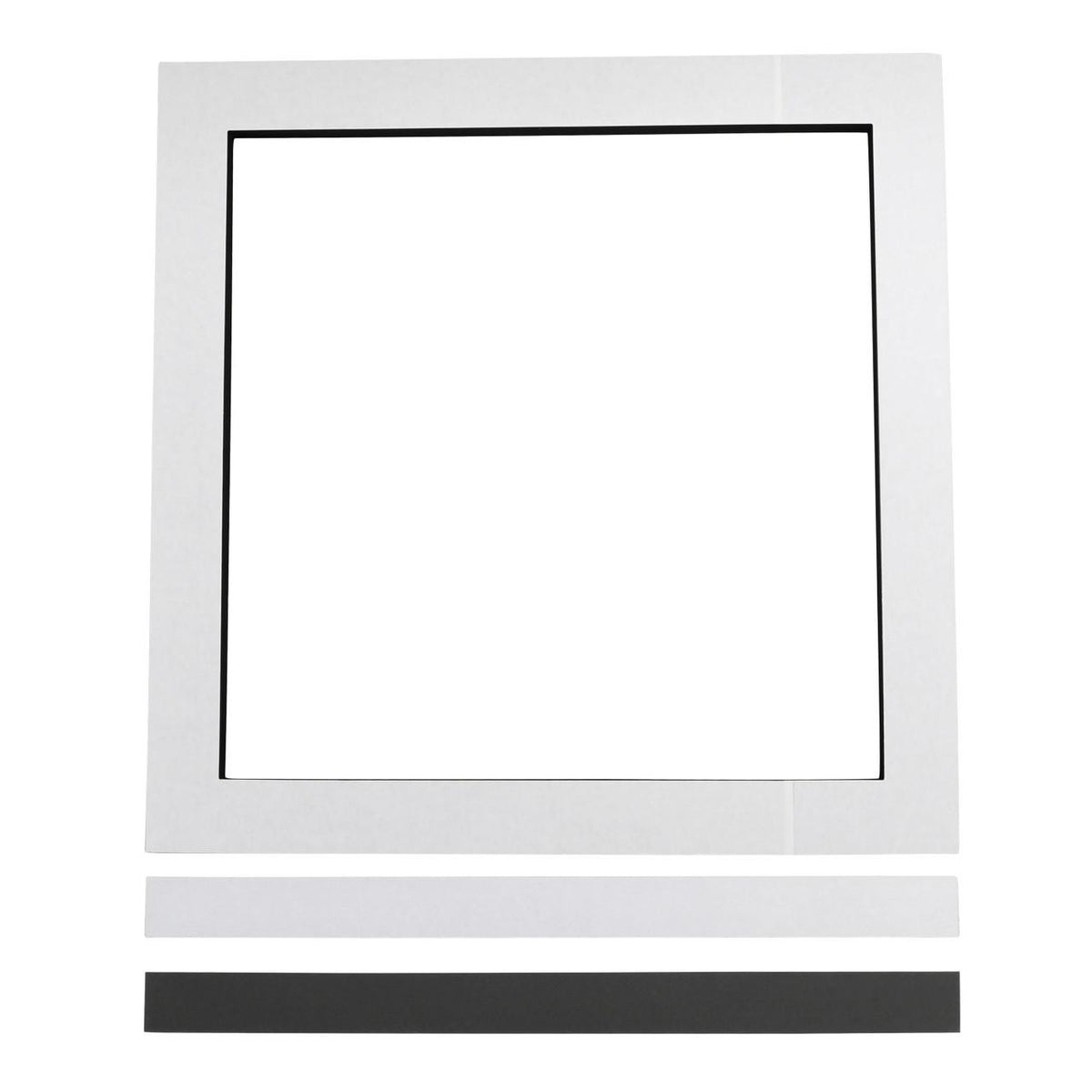

Gasket Inner dimensions: 14-3/8 inch long x 14-3/8 inch wide - Gasket Outer dimensions: 17.63 inch (L) x 17.63 inch (W) x 0.97 inch (H)

Product Dimensions:

17. Gasket Dimensions:63 inch (L) x 17.63 inch (W) x 0.97 inch (H)
18. Thick Gasket Pad Dimensions:94 inch (L) x 1.41 inch (W) x 0.86 inch (H)
19. Thin Gasket Pad Dimensions:88 inch (L) x 1.4 inch (W) x 0.33 inch (H)

Installation Notes:

• Always ensure that power is disconnected from the AC unit before beginning work.
• Refer to RV &/or AC manual for assembly/ disassembly instructions
• Gaskets should always be replaced when installing or reinstalling an RV roof AC unit.
• Completely remove any old gasket material.
• The surface on which the new gasket is being placed must be clean, dry and free of any sharp edges or burrs.
• When re-assembling the AC unit do NOT over-tighten screws/bolts. Refer to RV &/or AC manual for proper installation guidelines.
• (Note: DO NOT use any kind of liquid, tube sealant or silicone sealer. The gasket is intended to provide a compression seal.)
• Use leveling pads provided to support the section of the AC unit that does not sit over the picture frame gasket. Refer to your RV &/or AC manual for precise placement of pads.
• After the first week of use, check the AC unit bolts and retighten if necessary.
