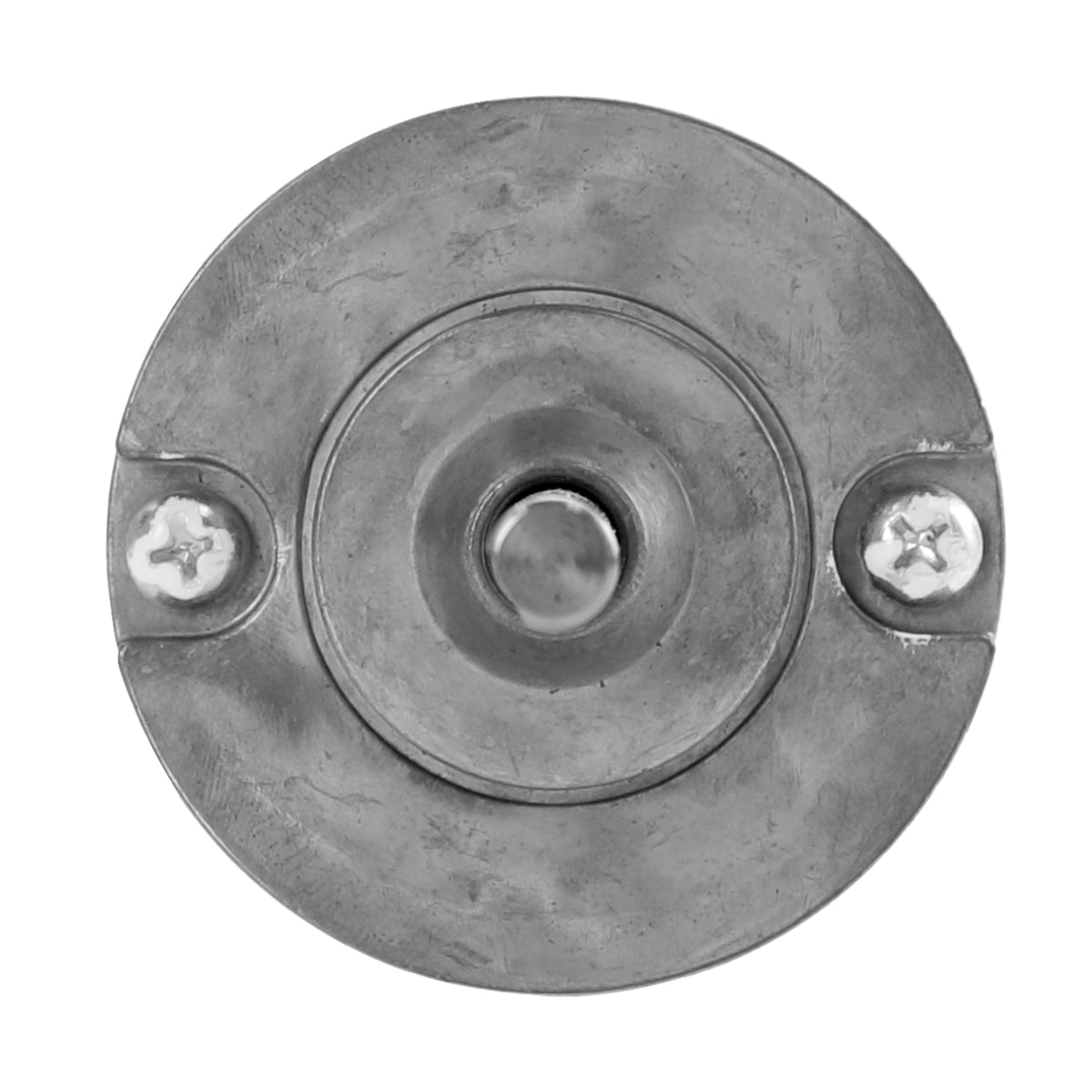

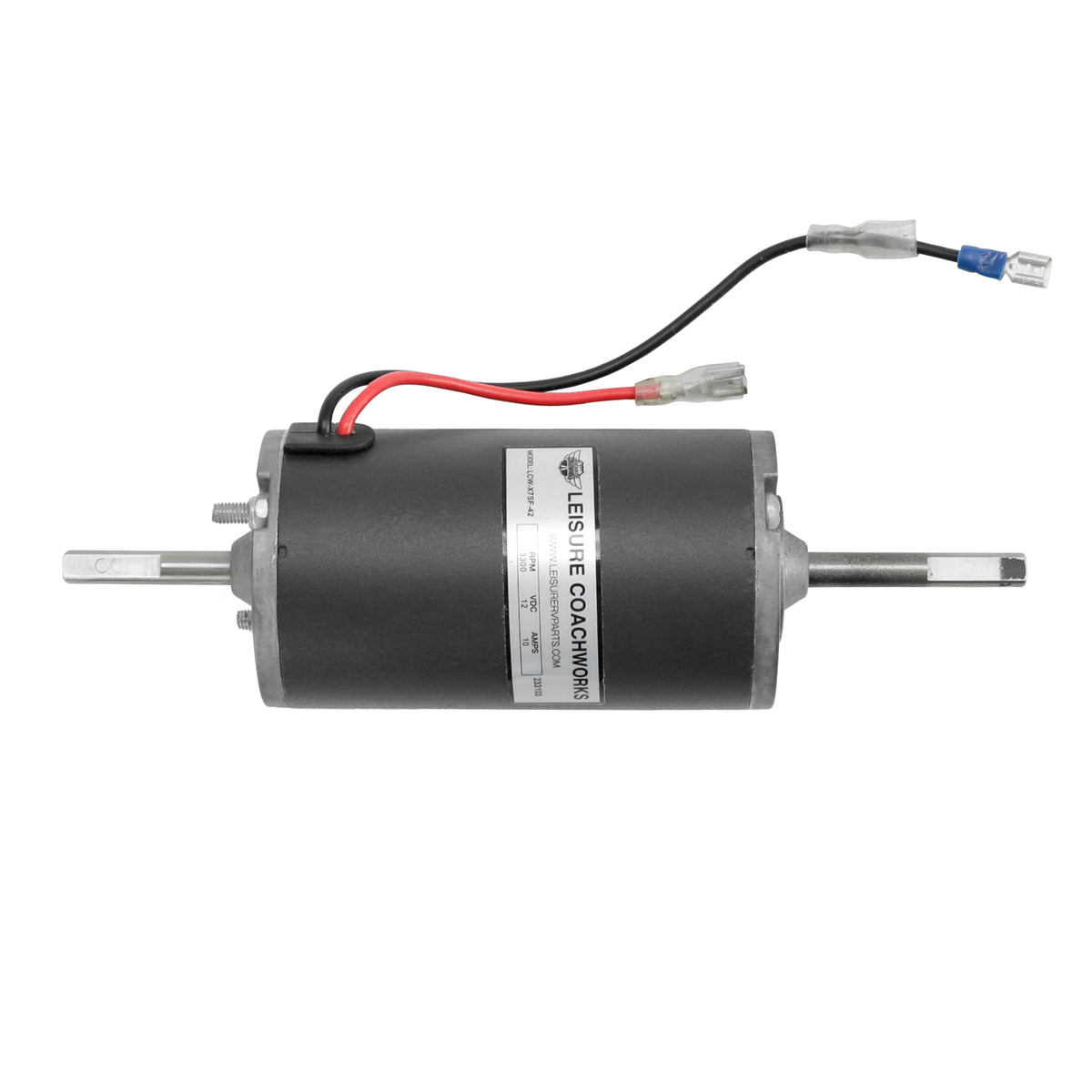

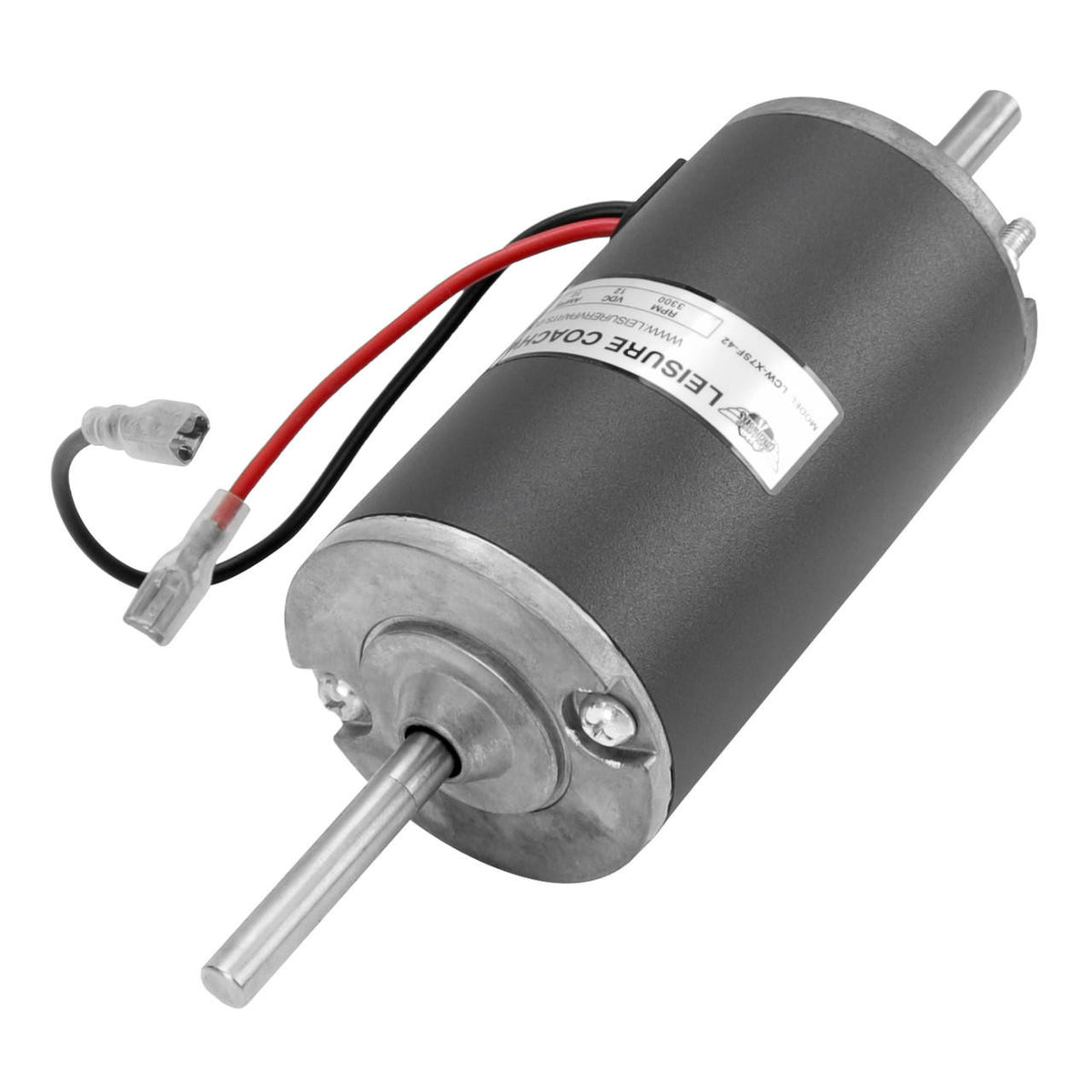

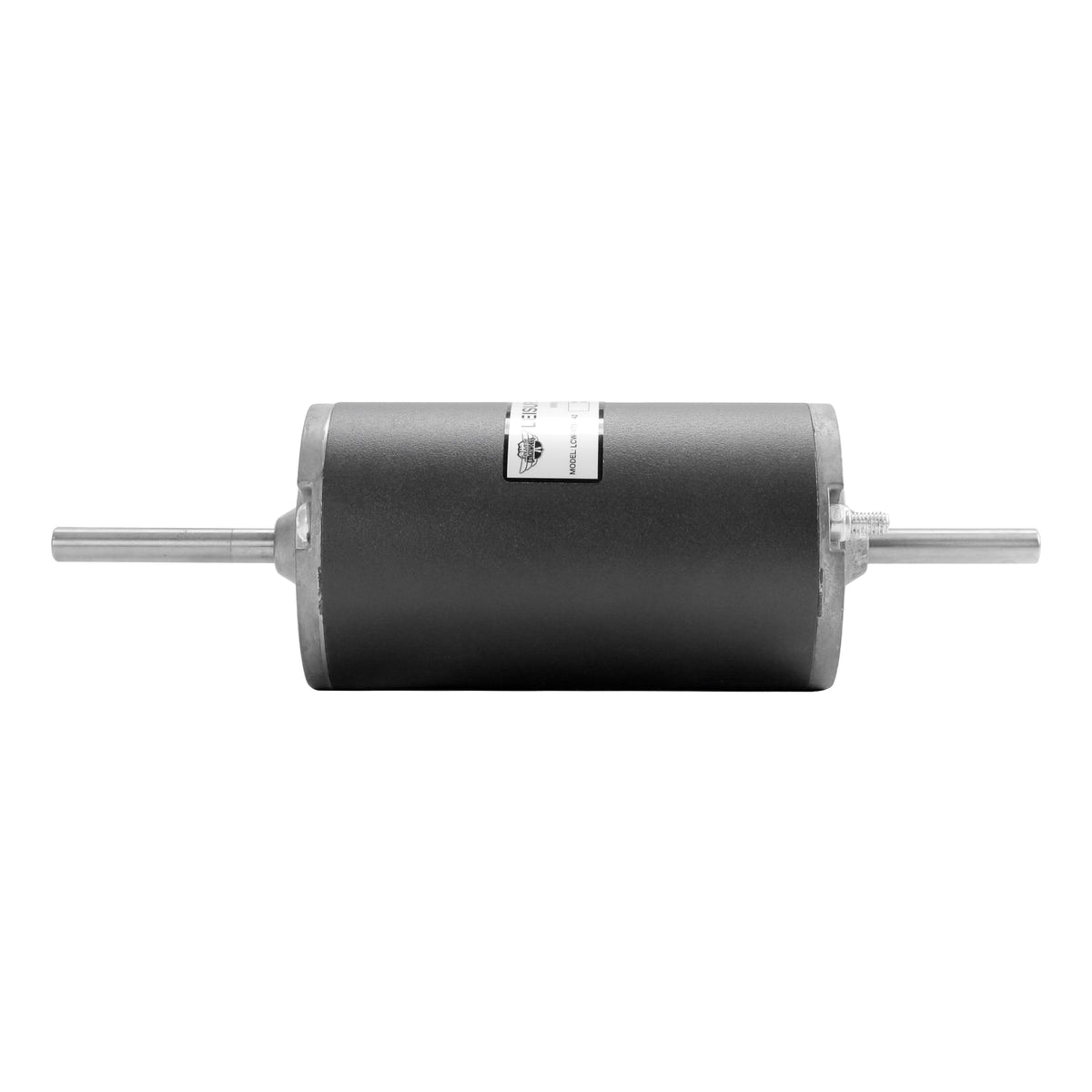

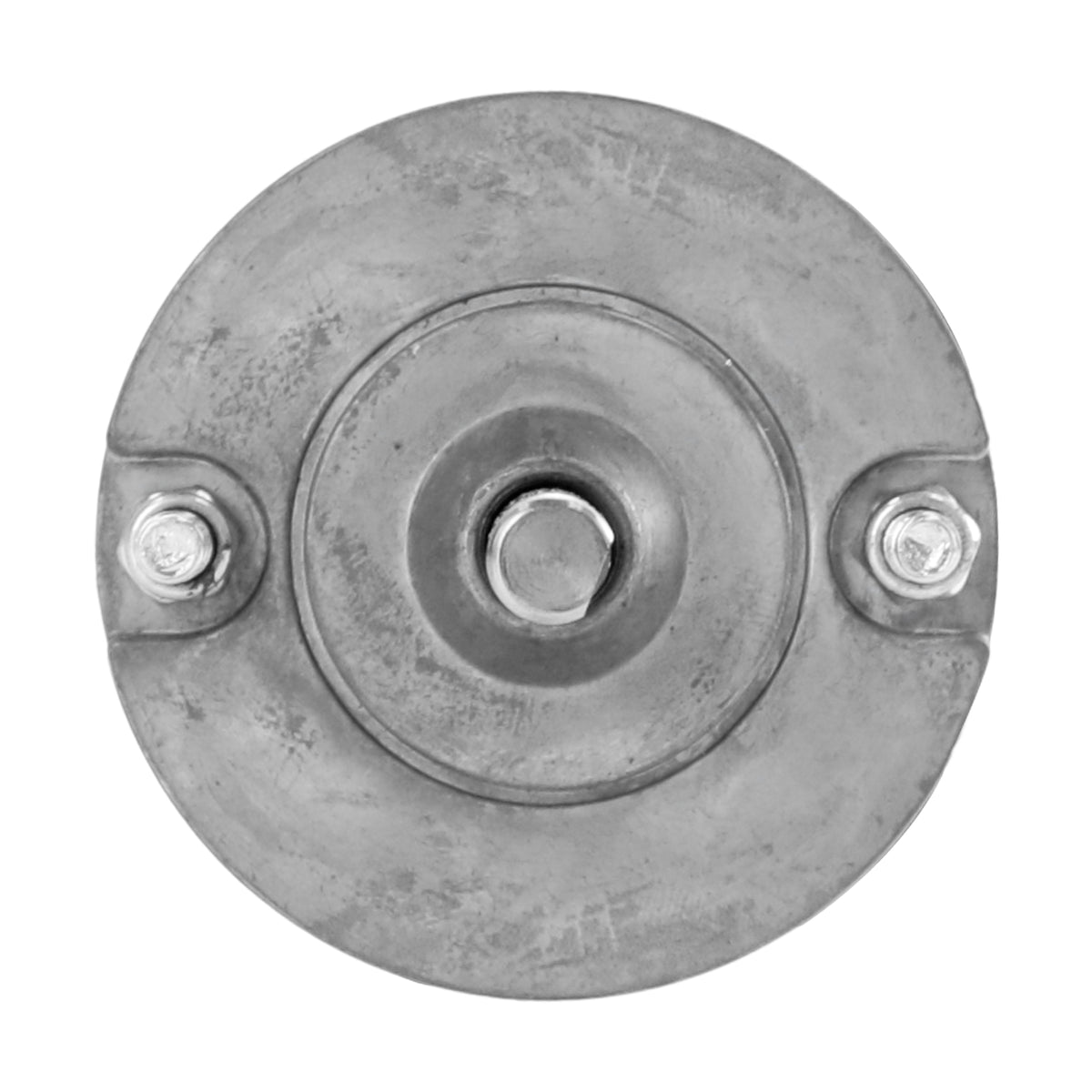

Leisure Coachworks RV Furnace Motor Replacement for SF-42 SF-42F 233103 (Black)

Leisure Coachworks Replacement Furnace Blower Motor for Suburban 233103

Voltage: 12 Volts

RPM: 3300 RPM

AMPS: 10

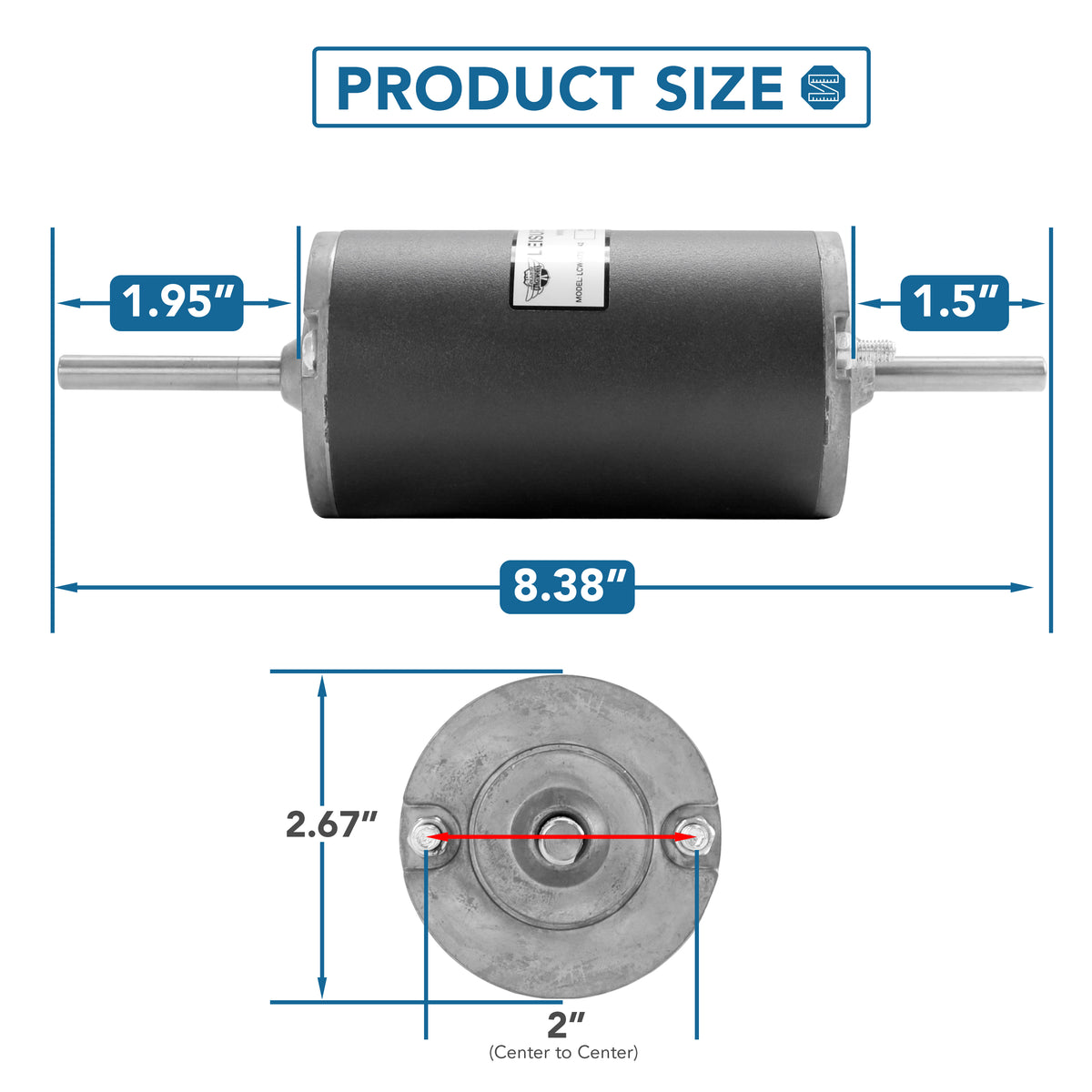

Dimensions: 8.38 (L) X 2.67 inch (W) X 2.67 inch (H)

Motor 2-15/32 inch Diameter

Shaft 5/16 inch Diameter x 1-15/16 inch (front) x 1-1/2 inch (rear)

Two Wire Leads with Insulated Female Terminals

Two Mounting Studs on Short Shaft Side 2 inch Apart Center to Center

Short Side Shaft from Base of Motor to End of Shaft- 1 1/2 inch (short side) & 1 61/64 inch (long side)

Replacement for RV furnace models SF-42, 42F (2-1/2 inch motor) for models built prior to 2001.

Designed to fit Specific Suburban Models and Serial Numbers including:

1. SF-42 under serial number 012305199
2. 42F under serial number 012305199
3. SF-42Q under serial number
4. SF-42FQ under serial number
