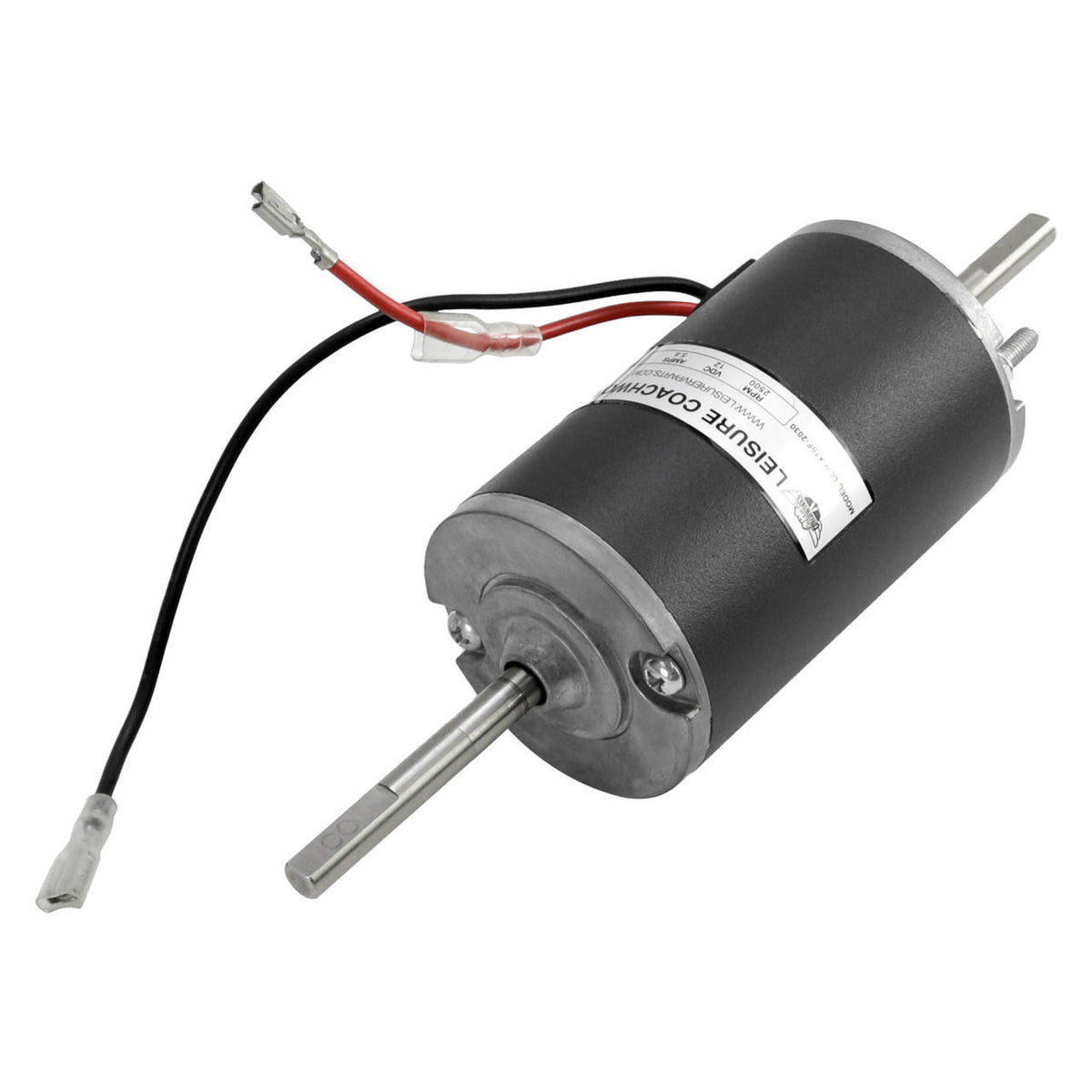

Leisure Coachworks RV Furnace Motor Replacement for SF-20 SF-30 233101 (Black)

Leisure Coachworks Replacement Furnace Blower Motor for Suburban 233102

Voltage: 12 Volts

RPM: 2500 RPM

AMPS: 5.8

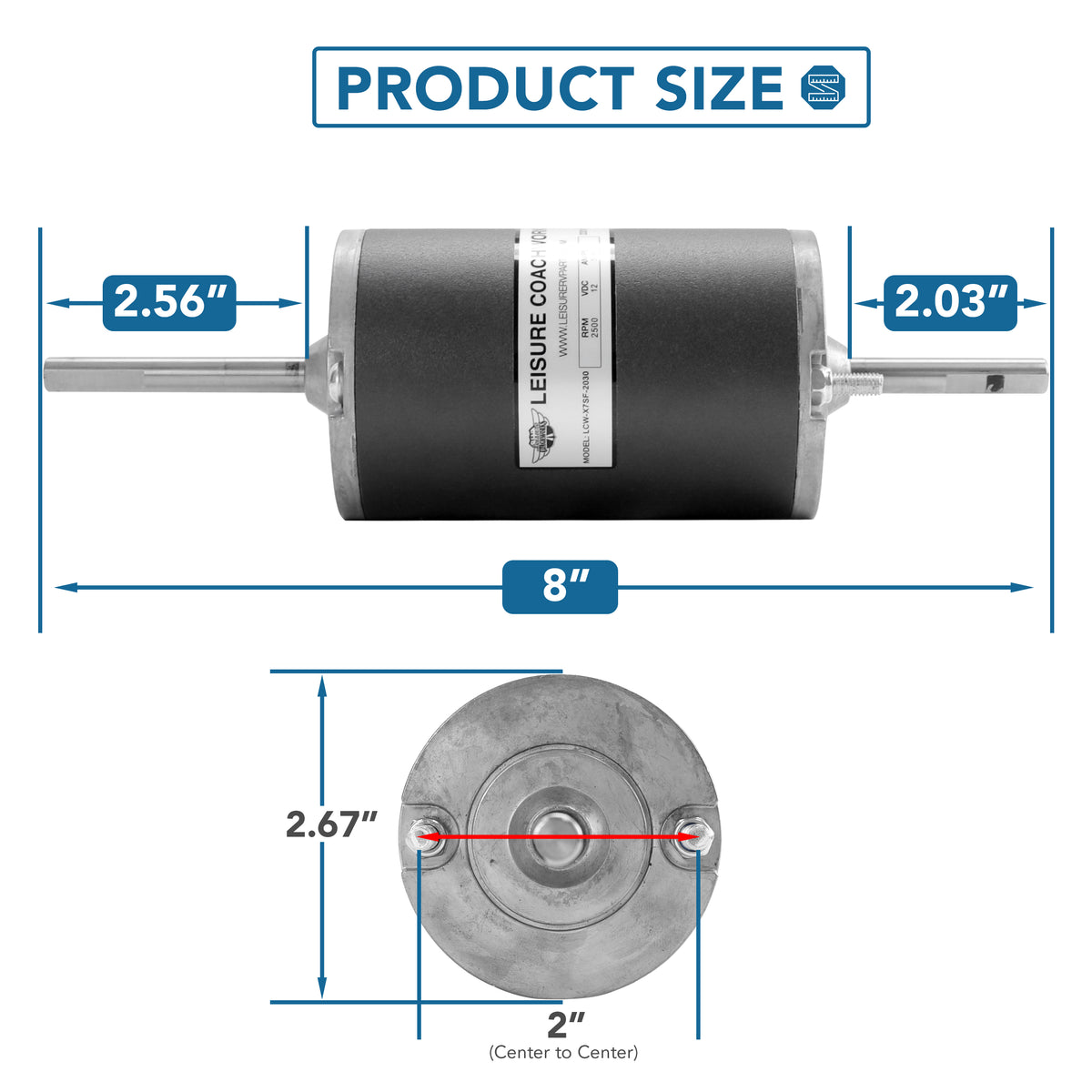

Dimensions: 8 (L) X 2.67 inch (W) X 2.67 inch (H)

Motor 2-1/2 inch Diameter

Shaft 5/16 inch Diameter x 2-7/16 inch (front) x 1-11/16 inch (rear)

Two Wire Leads with Insulated Female Terminals

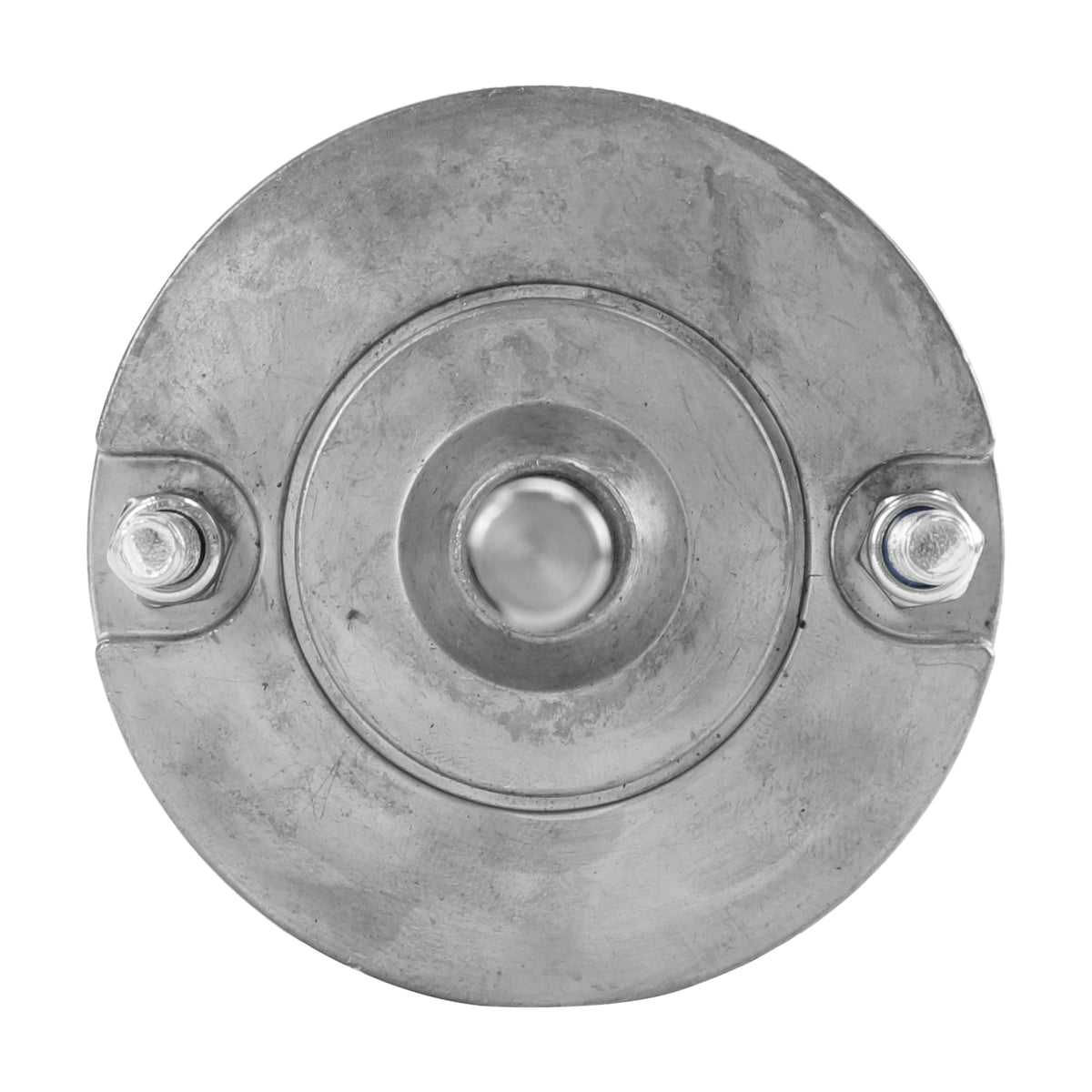

Two Mounting Studs on Short Shaft Side 2 inch Apart Center to Center

Short Side Shaft from Base of Motor to End of Shaft- 2 1/32 inch (short side) & 2 9/16 inch (long side)

Replacement for 233101, 231706, PE26251QZ

Designed to fit Specific Suburban Models and Serial Numbers including:

1. SF-20 under serial number 12205202
2. SF-20F under serial number 012205202
3. SF-25 under serial number 012106952
4. SF-30 under serial number 012106952
5. SF-30 under serial number 012003742
6. SF-30F under serial number 012003742
