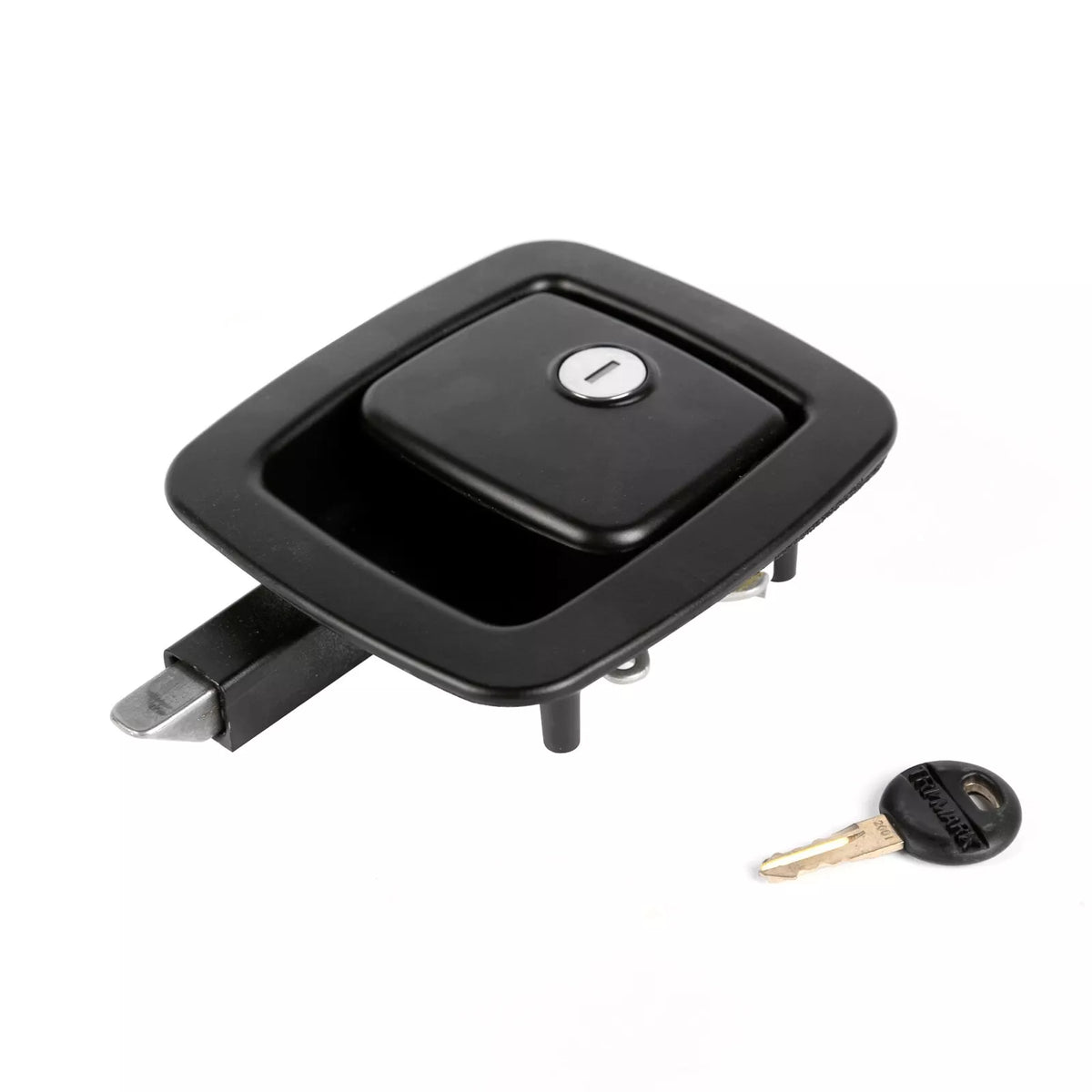

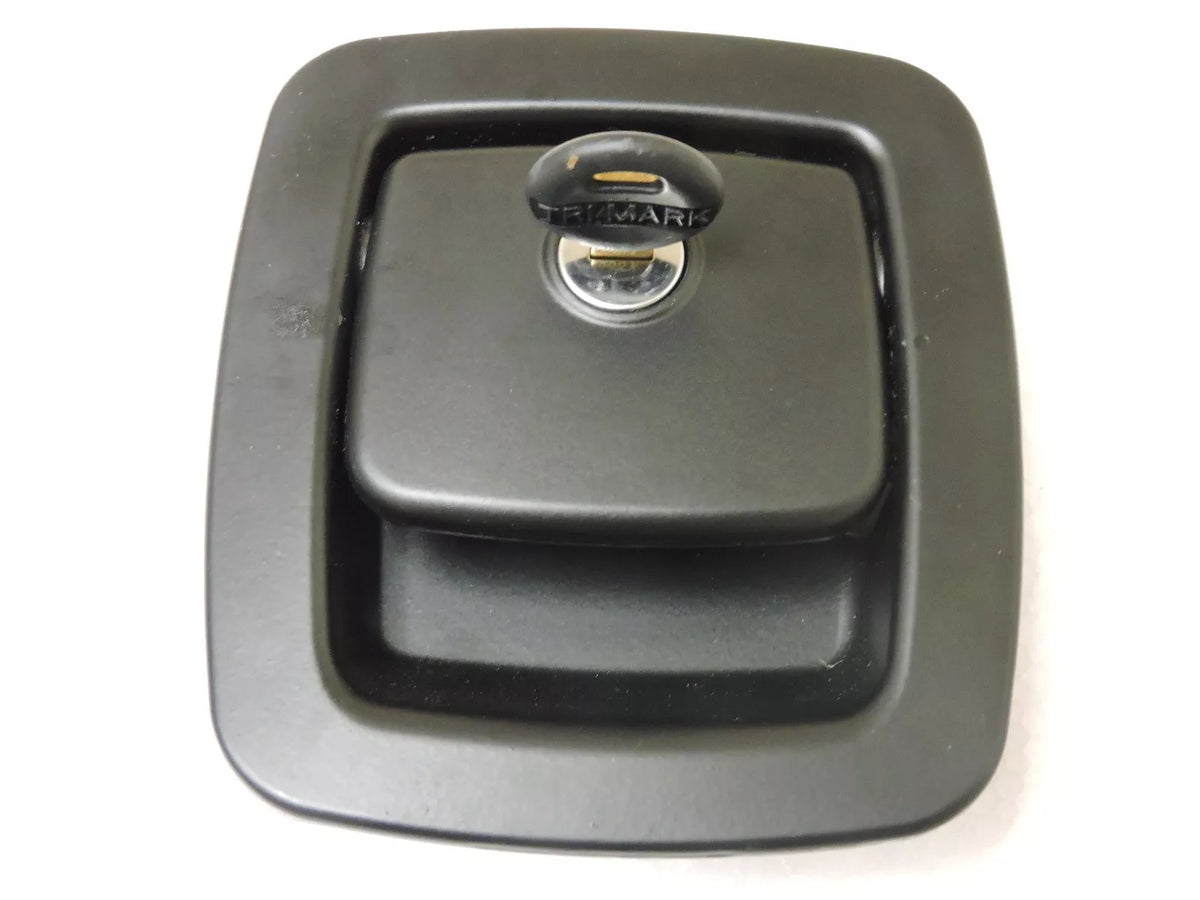

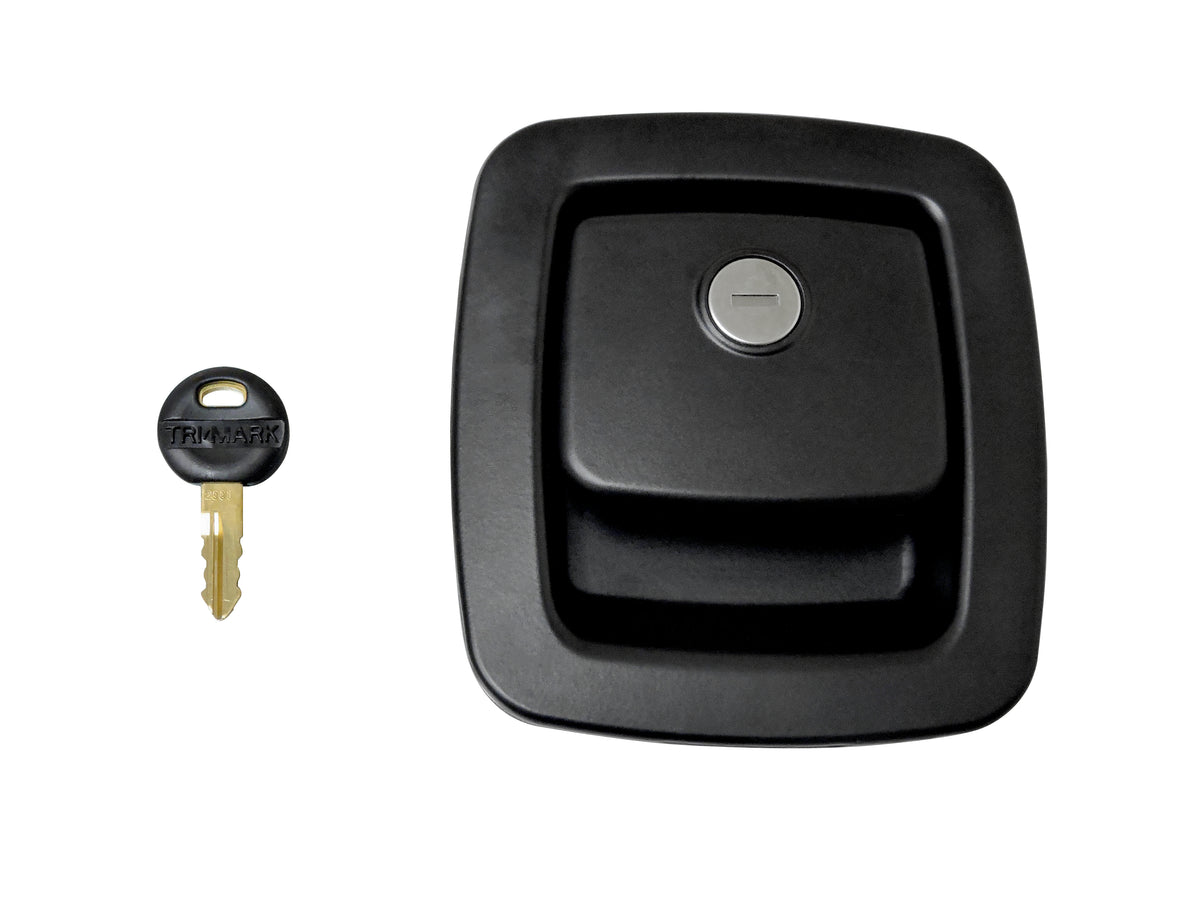

TriMark RV Compartment Door Latch Replacement for TM2001 Door Handle 5 1/4 Inch x 4 3/4 Inch (Black)

TriMark Baggage Compartment Lock & Latch

• 1 point locking latch with 3 point capabilities
  Outside measurements 4.75 Inch X 5.25 Inch, Hole cutout size 3.5 Inch X 5.25 Inch
  Single point assembly ideally suited to 1.437 Inch and thicker foam core doors with door seal forces up to 20 lbs. (other applications possible)
  Three-point assembly can be used on virtually any thickness door with linkage release efforts up to 7 lbs. per linkage rod
  Easy drop-in installation with two-point version

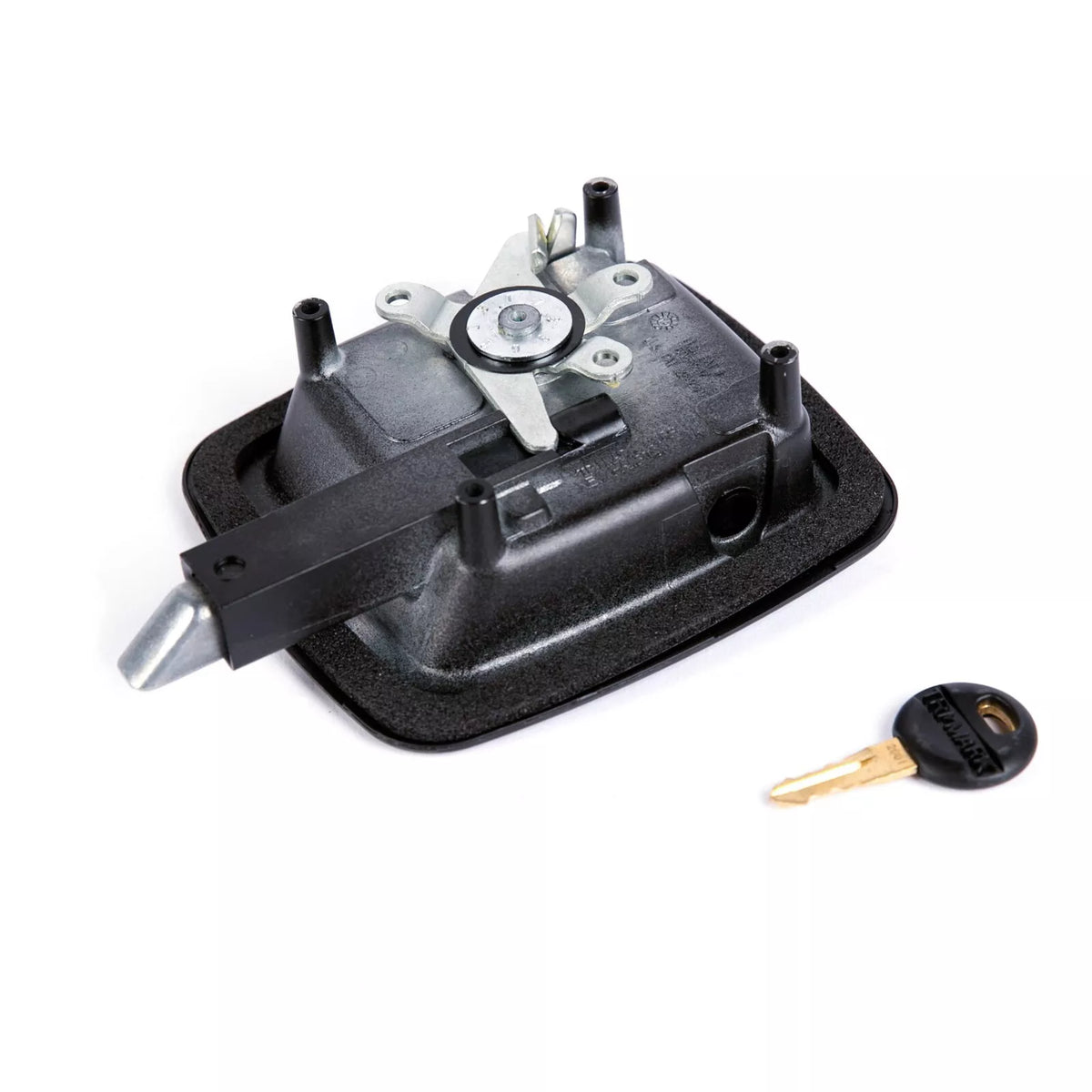

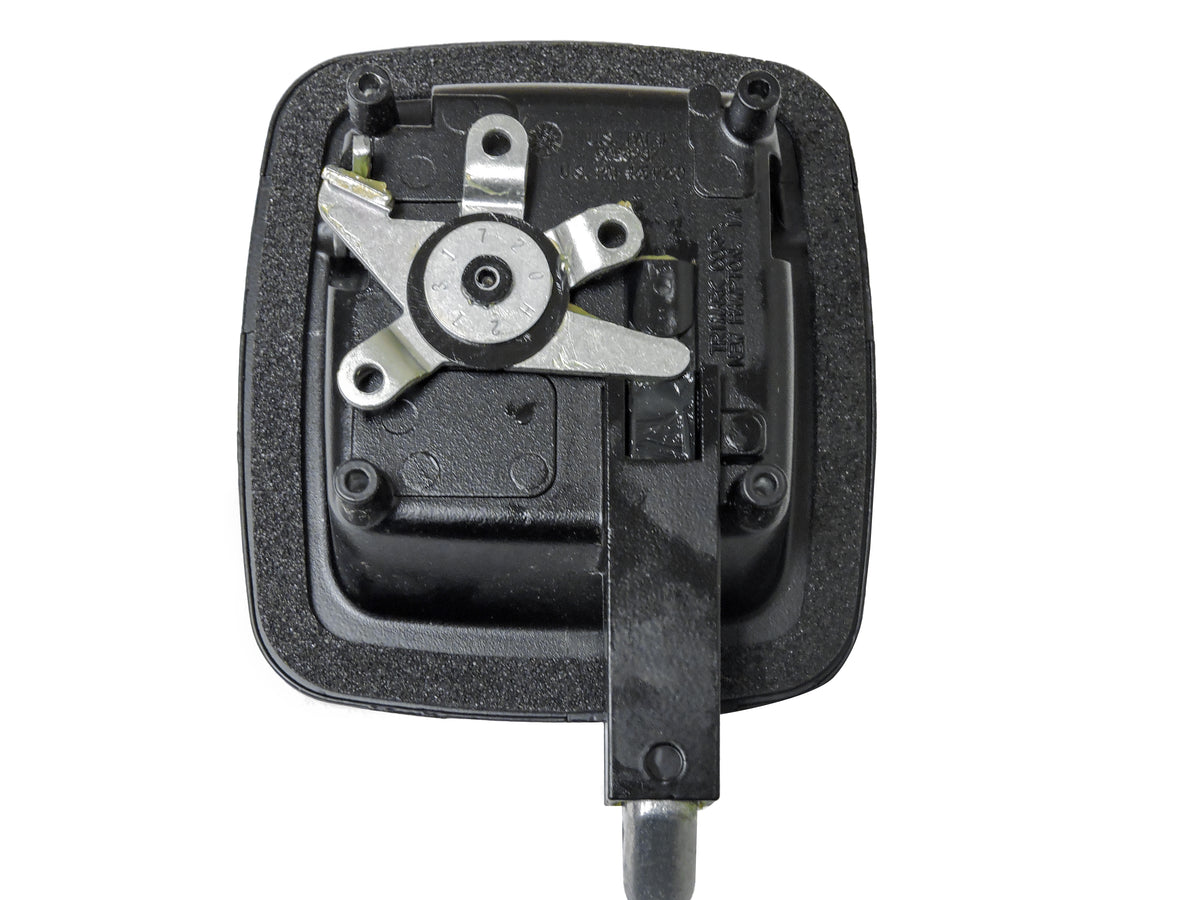

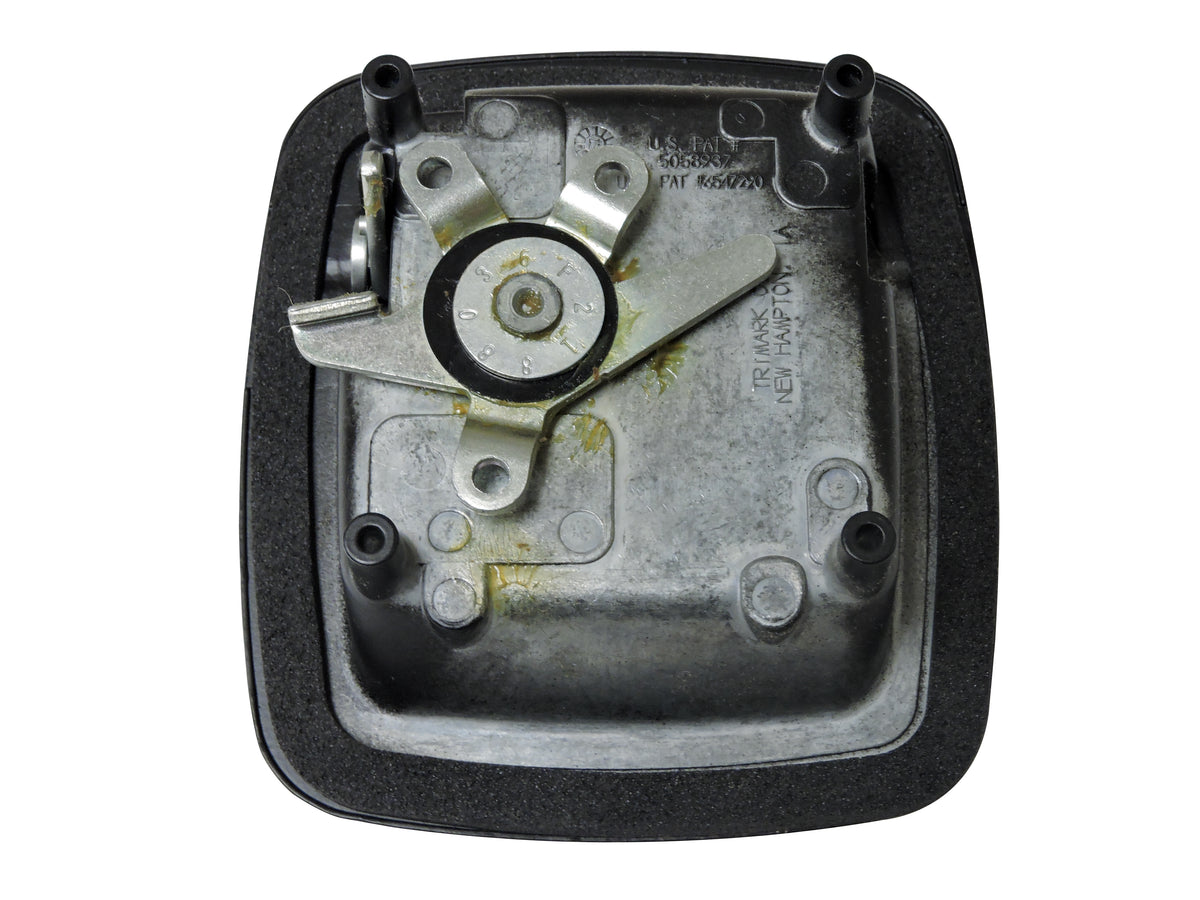

  Pivot arm and plunger bolt operating mechanism provides resistance to water and dirt penetration
  Modern automotive styling
  Shuttered key cylinder - Keyed alike
  Paddle can be locked before door is shut
  Comfortable finger access
  Black powder coated
  With plunger bolt for one operation
  Supplied with gasket already applied under recess in housing flange for simple, clean installation
  Mounts with (4) #8-32 thread cutting screws (not supplied)
